Intel Core i5-11400 Benchmark, Test and specs
Last updated:
The Intel Core i5-11400 has 6 cores with 12 threads and is based on the 11. gen of the Intel Core i5 series. The processor uses a mainboard with the LGA 1200 socket and was released in Q1/2021. The Intel Core i5-11400 scores 1,513 points in the Geekbench 5 single-core benchmark. In the Geekbench 5 multi-core benchmark, the result is 7,270 points.
| Name: | Intel Core i5-11400 |
|---|---|
| Family: | Intel Core i5 |
| CPU group: | Intel Core i 11000 |
| Architecture: | Rocket Lake S |
| Segment: | Desktop / Server |
| Generation: | 11 |
| Predecessor: | Intel Core i5-10400 |
| Successor: | Intel Core i5-12400 |
CPU Cores and Base Frequency
The Intel Core i5-11400 has 6 CPU cores and can calculate 12 threads in parallel. The clock frequency of the Intel Core i5-11400 is 2.60 GHz (4.40 GHz). The number of CPU cores greatly affects the speed of the processor and is an important performance indicator.
| CPU Cores / Threads: | 6 / 12 |
|---|---|
| Core architecture: | normal |
| Cores: | 6x |
| Hyperthreading / SMT: | Yes |
|---|---|
| Overclocking: | No |
| Frequency: | 2.60 GHz |
| Turbo Frequency (1 Core): | 4.40 GHz |
| Turbo Frequency (6 Cores): | 4.20 GHz |
Internal Graphics
The Intel Core i5-11400 has integrated graphics, called iGPU for short. Specifically, the Intel Core i5-11400 uses the Intel UHD Graphics 730, which has 192 texture shaders and 24 execution units. The iGPU uses the system's main memory as graphics memory and sits on the processor's die.
| GPU name: | Intel UHD Graphics 730 |
|---|---|
| GPU frequency: | 0.35 GHz |
| GPU (Turbo): | 1.30 GHz |
| Compute units: | 24 |
| Shader: | 192 |
| Max. GPU Memory: | 64 GB |
| Max. displays: | 3 |
|---|---|
| Generation: | 12 |
| Direct X: | 12 |
| Technology: | 14 nm |
| Release date: | Q1/2021 |
Hardware codec support
A photo or video codec that is accelerated in hardware can greatly accelerate the working speed of a processor and extend the battery life of notebooks or smartphones when playing videos.
| h265 / HEVC (8 bit): | Decode / Encode |
|---|---|
| h265 / HEVC (10 bit): | Decode / Encode |
| h264: | Decode / Encode |
| VP8: | Decode / Encode |
| VP9: | Decode / Encode |
| AV1: | Decode |
|---|---|
| AVC: | Decode / Encode |
| VC-1: | Decode |
| JPEG: | Decode / Encode |
Memory & PCIeThe processor can use up to 128 GB memory in 2 (Dual Channel) memory channels. The maximum memory bandwidth is 51.2 GB/s. The memory type as well as the amount of memory can greatly affect the speed of the system. |
|
| Memory type: | Memory bandwidth: |
|---|---|
| DDR4-3200 | 51.2 GB/s |
| Max. Memory: | 128 GB |
| Memory channels: | 2 (Dual Channel) |
| ECC: | No |
| PCIe: | 4.0 x 20 |
| PCIe Bandwidth: | 39.4 GB/s |
Thermal ManagementThe thermal design power (TDP for short) of the processor is 65 W. The TDP specifies the necessary cooling solution that is required to cool the processor sufficiently. The TDP usually gives a rough idea of the actual power consumption of the CPU. |
|
|---|---|
| TDP (PL1 / PBP): | 65 W |
| TDP (PL2): | 154 W / 56 s |
| TDP up: | -- |
| TDP down: | -- |
| Tjunction max.: | 100 °C |
Technical details
The Intel Core i5-11400 is made in 14 nm. The smaller the manufacturing process of a CPU, the more modern and energy-efficient it is. Overall, the processor has 15.00 MB cache. A large cache can greatly speed up the processor's speed in some cases such as games.
| Technology: | 14 nm |
|---|---|
| Chip design: | Monolithic |
| Socket: | LGA 1200 |
| L2-Cache: | 3.00 MB |
| L3-Cache: | 12.00 MB |
| AES-NI: | Yes |
| Operating systems: | Windows 10, Windows 11, Linux |
| Virtualization: | VT-x, VT-x EPT, VT-d |
|---|---|
| Instruction set (ISA): | x86-64 (64 bit) |
| ISA extensions: | SSE4.1, SSE4.2, AVX2, AVX-512 |
| Release date: | Q1/2021 |
| Release price: | 182 $ |
| Part Number: | -- |
| Documents: | -- |
6C 12T @ 2.60 GHz (4.40 GHz)
buy now on Amazon and save!
Benchmark results
The benchmark results for the Intel Core i5-11400 have been carefully checked by us. We only publish benchmark results that have been created by us or that have been submitted by a visitor and then checked by a team member. All results are based on and fullfill our benchmark guidelines.
Screenshots:
Screenshots:
- Cinebench R23 (16GB DDR4-2666), Windows 10 Pro [Intel Core i5-11400F]

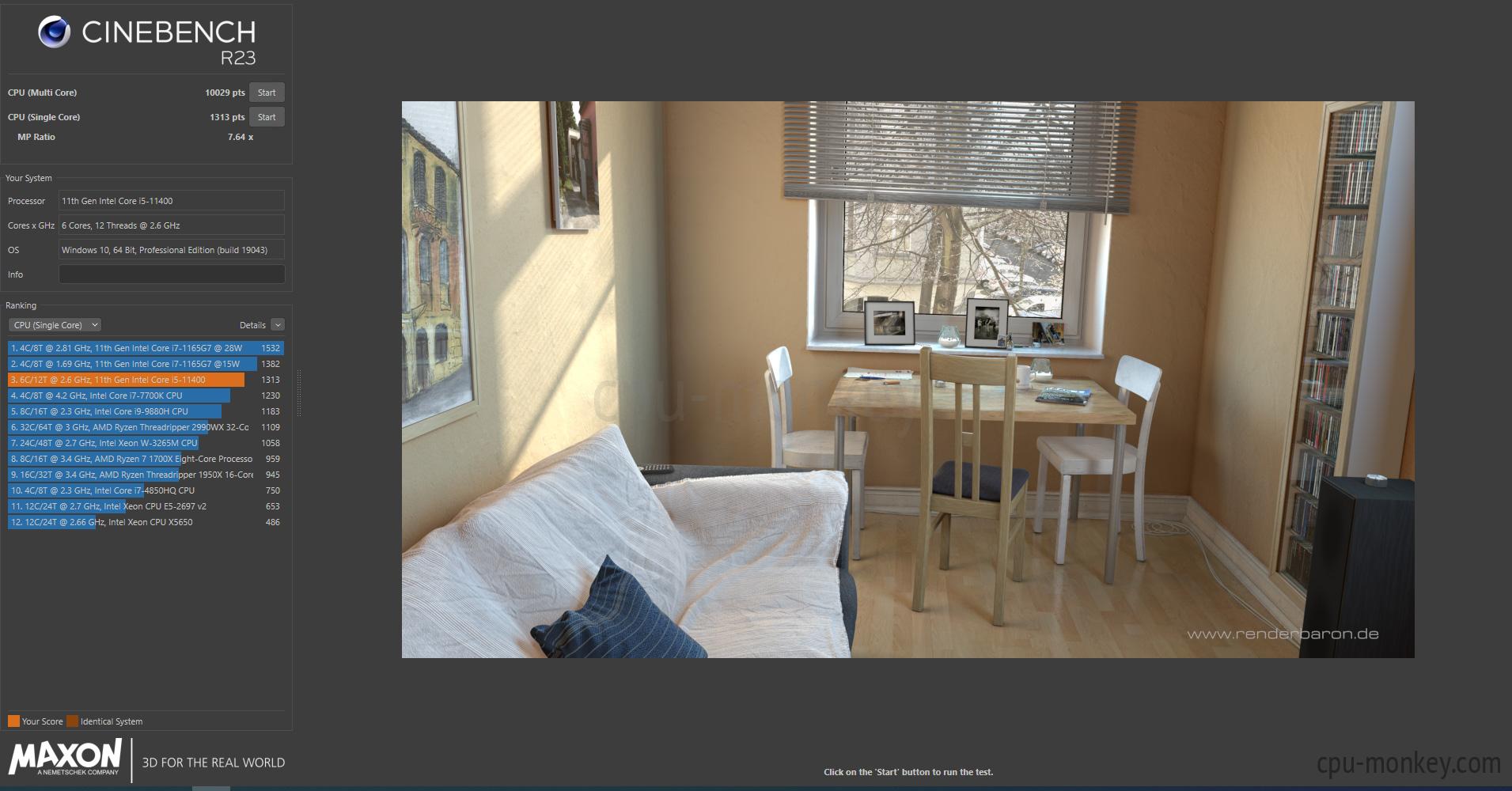

- Cinebench R23 on Windows 10 Pro

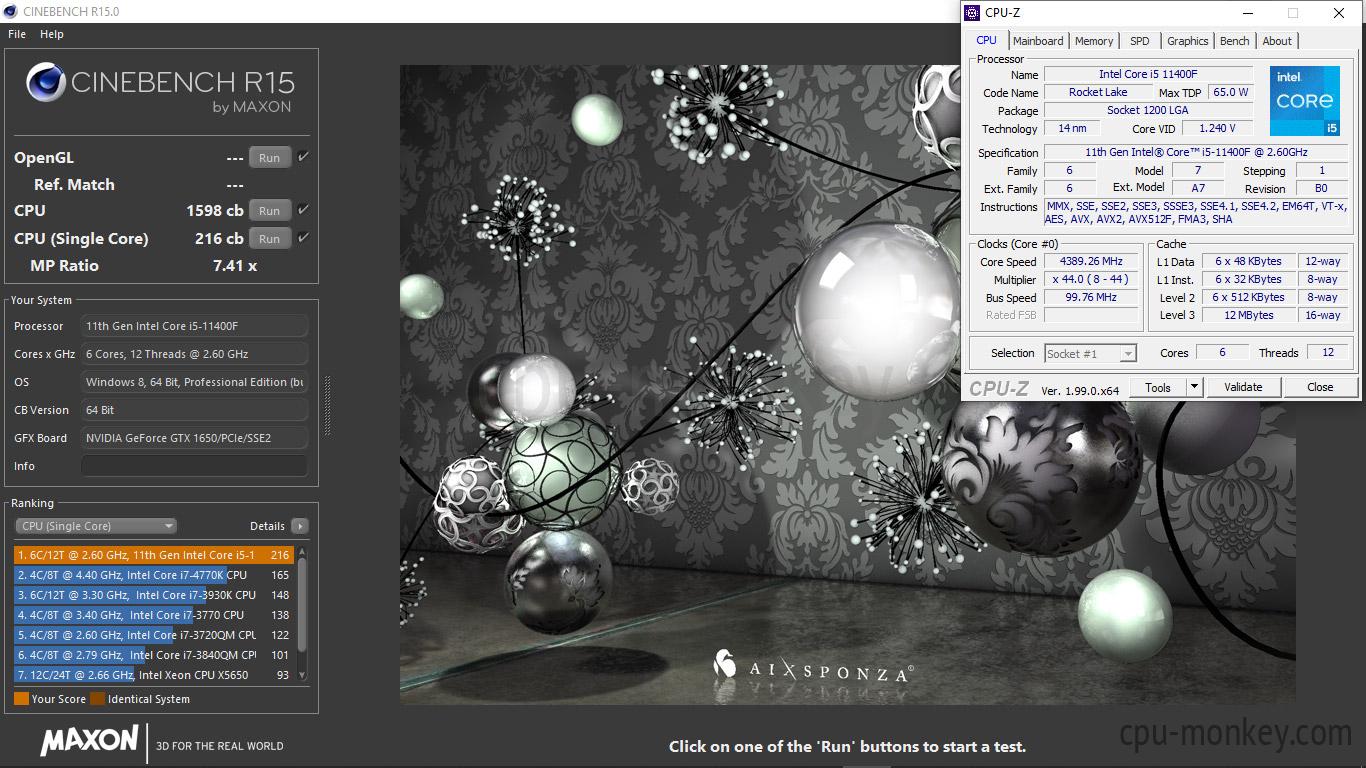

- Cinebench R15 (DDR4-2666), Windows 10 Pro [Intel Core i5-11400F]
- Cinebench R23, Windows 10 [Intel Core i5-11400F]
Cinebench 2024 (Single-Core)
The Cinebench 2024 benchmark is based on the Redshift rendering engine, which is also used in Maxon's 3D program Cinema 4D. The benchmark runs are each 10 minutes long to test whether the processor is limited by its heat generation.
|
Intel Core i5-1245U
10C 12T @ 4.40 GHz |
||
|
AMD Ryzen 7 5700G
8C 16T @ 4.60 GHz |
||
|
AMD Ryzen 7 PRO 5750G
8C 16T @ 4.60 GHz |
||
|
|
Intel Core i5-11400
6C 12T @ 4.40 GHz |
||
|
|
Intel Core i5-11400F
6C 12T @ 4.40 GHz |
||
|
Intel Core i7-11800H
8C 16T @ 4.60 GHz |
||
|
AMD Ryzen 9 5900HX
8C 16T @ 4.60 GHz |
||
Cinebench 2024 (Multi-Core)
The Multi-Core test of the Cinebench 2024 benchmark uses all cpu cores to render using the Redshift rendering engine, which is also used in Maxons Cinema 4D. The benchmark run is 10 minutes long to test whether the processor is limited by its heat generation.|
|
AMD Ryzen 7 4800H
8C 16T @ 4.20 GHz |
||
|
|
AMD Ryzen 7 4800HS
8C 16T @ 4.20 GHz |
||
|
|
Intel Core i5-11400F
6C 12T @ 4.40 GHz |
||
|
|
Intel Core i5-11400
6C 12T @ 4.40 GHz |
||
|
|
AMD Ryzen 7 PRO 6850H
8C 16T @ 4.70 GHz |
||
|
AMD Ryzen 5 5600G
6C 12T @ 4.40 GHz |
||
|
|
AMD Ryzen 7 2700X
8C 16T @ 4.30 GHz |
||
Cinebench R23 (Single-Core)
Cinebench R23 is the successor of Cinebench R20 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.|
|
AMD Ryzen 5 6600U
6C 12T @ 4.40 GHz |
||
|
|
Intel Core i5-11400H
6C 12T @ 4.50 GHz |
||
|
|
AMD Ryzen 5 5600X3D
6C 12T @ 4.40 GHz |
||
|
|
Intel Core i5-11400
6C 12T @ 4.40 GHz |
||
|
|
Intel Core i5-11400F
6C 12T @ 4.40 GHz |
||
|
|
AMD Ryzen 5 5500
6C 12T @ 4.20 GHz |
||
|
|
Intel Core i5-11260H
6C 12T @ 4.40 GHz |
||
Cinebench R23 (Multi-Core)
Cinebench R23 is the successor of Cinebench R20 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.|
|
Intel Core i5-12450H
8C 12T @ 3.40 GHz |
||
|
|
AMD Ryzen 7 4980U
8C 16T @ 2.00 GHz |
||
|
|
Intel Core i7-8086K
6C 12T @ 4.30 GHz |
||
|
|
Intel Core i5-11400
6C 12T @ 4.20 GHz |
||
|
|
Intel Core i5-11400F
6C 12T @ 4.20 GHz |
||
|
|
AMD Ryzen 5 5600H
6C 12T @ 3.80 GHz |
||
|
|
AMD Ryzen 7 4800U
8C 16T @ 3.20 GHz |
||
Geekbench 5, 64bit (Single-Core)
Geekbench 5 is a cross plattform benchmark that heavily uses the systems memory. A fast memory will push the result a lot. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.
|
Qualcomm Snapdragon 8 Gen 2
8C 8T @ 3.20 GHz |
||
|
|
AMD Ryzen 9 5980HS
8C 16T @ 4.80 GHz |
||
|
|
AMD Ryzen 7 6800U
8C 16T @ 4.70 GHz |
||
|
|
Intel Core i5-11400
6C 12T @ 4.40 GHz |
||
|
|
Intel Core i7-11600H
6C 12T @ 4.60 GHz |
||
|
|
Intel Core i5-11400F
6C 12T @ 4.40 GHz |
||
|
AMD EPYC 72F3
8C 16T @ 4.10 GHz |
||
Geekbench 5, 64bit (Multi-Core)
Geekbench 5 is a cross plattform benchmark that heavily uses the systems memory. A fast memory will push the result a lot. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.|
|
AMD Ryzen 7 7730U
8C 16T @ 2.80 GHz |
||
|
|
AMD Ryzen 7 5800HS
8C 16T @ 3.50 GHz |
||
|
Intel Xeon E5-2690 v2
10C 20T @ 3.30 GHz |
||
|
|
Intel Core i5-11400
6C 12T @ 4.20 GHz |
||
|
|
Intel Core i5-11400F
6C 12T @ 4.20 GHz |
||
|
Intel Xeon E7-4880 v2
15C 30T @ 3.10 GHz |
||
|
Intel Xeon W-2135
6C 12T @ 4.20 GHz |
||
Geekbench 6 (Single-Core)
Geekbench 6 is a benchmark for modern computers, notebooks and smartphones. What is new is an optimized utilization of newer CPU architectures, e.g. based on the big.LITTLE concept and combining CPU cores of different sizes. The single-core benchmark only evaluates the performance of the fastest CPU core, the number of CPU cores in a processor is irrelevant here.|
|
AMD Ryzen 9 5900HS Creator Edition
8C 16T @ 4.60 GHz |
||
|
|
AMD Ryzen 9 5900HX
8C 16T @ 4.60 GHz |
||
|
|
Intel Core i7-11800H
8C 16T @ 4.60 GHz |
||
|
|
Intel Core i5-11400
6C 12T @ 4.40 GHz |
||
|
|
Intel Core i5-11400F
6C 12T @ 4.40 GHz |
||
|
|
AMD Ryzen 7 5700G
8C 16T @ 4.60 GHz |
||
|
|
AMD Ryzen 9 5980HS
8C 16T @ 4.80 GHz |
||
Geekbench 6 (Multi-Core)
Geekbench 6 is a benchmark for modern computers, notebooks and smartphones. What is new is an optimized utilization of newer CPU architectures, e.g. based on the big.LITTLE concept and combining CPU cores of different sizes. The multi-core benchmark evaluates the performance of all of the processor's CPU cores. Virtual thread improvements such as AMD SMT or Intel's Hyper-Threading have a positive impact on the benchmark result.|
|
Intel Xeon E5-2690 v3
12C 24T @ 3.00 GHz |
||
|
|
AMD EPYC 7601
32C 64T @ 2.70 GHz |
||
|
|
AMD Ryzen 7 6800U
8C 16T @ 3.40 GHz |
||
|
|
Intel Core i5-11400
6C 12T @ 4.20 GHz |
||
|
|
Intel Core i5-11400F
6C 12T @ 4.20 GHz |
||
|
|
Intel Core i7-8086K
6C 12T @ 4.30 GHz |
||
|
|
AMD Ryzen 9 5980HX
8C 16T @ 4.40 GHz |
||
Cinebench R20 (Single-Core)
Cinebench R20 is the successor of Cinebench R15 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.|
|
AMD Ryzen 5 5500
6C 12T @ 4.20 GHz |
||
|
|
AMD Ryzen 9 3950X
16C 32T @ 4.70 GHz |
||
|
|
AMD Ryzen 5 5600H
6C 12T @ 4.20 GHz |
||
|
|
Intel Core i5-11400
6C 12T @ 4.40 GHz |
||
|
|
Intel Core i5-11400F
6C 12T @ 4.40 GHz |
||
|
Intel Core i9-10900F
10C 20T @ 5.20 GHz |
||
|
|
Intel Core i9-10900
10C 20T @ 5.20 GHz |
||
Cinebench R20 (Multi-Core)
Cinebench R20 is the successor of Cinebench R15 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.|
|
AMD Ryzen 7 4980U
8C 16T @ 2.00 GHz |
||
|
|
Intel Core i7-10700T
8C 16T @ 3.70 GHz |
||
|
|
Intel Core i7-10700TE
8C 16T @ 2.00 GHz |
||
|
|
Intel Core i5-11400
6C 12T @ 4.20 GHz |
||
|
|
Intel Core i5-11400F
6C 12T @ 4.20 GHz |
||
|
|
AMD Ryzen 5 3600XT
6C 12T @ 4.50 GHz |
||
|
|
AMD Ryzen 7 4800HS
8C 16T @ 3.80 GHz |
||
iGPU - FP32 Performance (Single-precision GFLOPS)
The theoretical computing performance of the internal graphics unit of the processor with simple accuracy (32 bit) in GFLOPS. GFLOPS indicates how many billion floating point operations the iGPU can perform per second.|
|
Intel Core i7-1065G7
Intel Iris Plus Graphics G7 @ 0.50 GHz |
||
|
AMD A10-7400P
AMD Radeon R6 (Kaveri) @ 0.65 GHz |
||
|
Apple A9X
Apple A9X @ 0.65 GHz |
||
|
|
Intel Core i5-11400
Intel UHD Graphics 730 @ 1.30 GHz |
||
|
|
Qualcomm Snapdragon 765
Qualcomm Adreno 620 @ 0.63 GHz |
||
|
|
Qualcomm Snapdragon 732G
Qualcomm Adreno 618 @ 0.95 GHz |
||
|
Intel Pentium Silver N6005
Intel UHD Graphics 32 EUs (Jasper Lake) @ 0.90 GHz |
||
Blender 3.1 Benchmark
In the Blender Benchmark 3.1, the scenes "monster", "junkshop" and "classroom" are rendered and the time required by the system is measured. In our benchmark we test the CPU and not the graphics card. Blender 3.1 was presented as a standalone version in March 2022.|
|
AMD Ryzen 5 3600
6C 12T @ 4.00 GHz |
||
|
|
AMD Ryzen 5 4600G
6C 12T @ 4.20 GHz |
||
|
AMD Ryzen 5 PRO 4650G
6C 12T @ 4.15 GHz |
||
|
|
Intel Core i5-11400
6C 12T @ 4.20 GHz |
||
|
|
Intel Core i5-11400F
6C 12T @ 4.20 GHz |
||
|
|
Intel Core i9-10980HK
8C 16T @ 3.40 GHz |
||
|
|
Intel Core i7-9700KF
8C 8T @ 4.60 GHz |
||
Estimated results for PassMark CPU Mark
Some of the CPUs listed below have been benchmarked by CPU-monkey. However the majority of CPUs have not been tested and the results have been estimated by a CPU-monkey’s secret proprietary formula. As such they do not accurately reflect the actual Passmark CPU mark values and are not endorsed by PassMark Software Pty Ltd.|
|
Intel Xeon E5-2697 v2
12C 24T @ 3.10 GHz |
||
|
|
AMD Ryzen 5 5600H
6C 12T @ 3.80 GHz |
||
|
|
Intel Core i5-12500T
6C 12T @ 3.20 GHz |
||
|
|
Intel Core i5-11400
6C 12T @ 4.20 GHz |
||
|
|
Intel Core i5-11400F
6C 12T @ 4.20 GHz |
||
|
|
Intel Core i5-1335U
10C 12T @ 1.30 GHz |
||
|
AMD Ryzen Threadripper 1900X
8C 16T @ 4.00 GHz |
||
CPU-Z Benchmark 17 (Single-Core)
The CPU-Z benchmark measures a processor's performance by measuring the time it takes the system to complete all benchmark calculations. The faster the benchmark is completed, the higher the score.|
|
Intel Core i7-11800H
8C 16T @ 3.40 GHz |
||
|
|
Intel Core i9-10900K
10C 20T @ 4.90 GHz |
||
|
|
Intel Core i9-10850K
10C 20T @ 4.80 GHz |
||
|
|
Intel Core i5-11400
6C 12T @ 4.20 GHz |
||
|
|
Intel Core i7-10700KF
8C 16T @ 4.90 GHz |
||
|
|
AMD Ryzen 5 5600X3D
6C 12T @ 4.20 GHz |
||
|
|
Intel Core i5-11400F
6C 12T @ 4.20 GHz |
||
CPU-Z Benchmark 17 (Multi-Core)
The CPU-Z benchmark measures a processor's performance by measuring the time it takes the system to complete all benchmark calculations. The faster the benchmark is completed, the higher the score.|
|
Intel Core i9-9980HK
8C 16T @ 2.40 GHz |
||
|
|
AMD Ryzen 7 1700X
8C 16T @ 3.40 GHz |
||
|
|
Intel Core i5-11400F
6C 12T @ 2.60 GHz |
||
|
|
Intel Core i5-11400
6C 12T @ 2.60 GHz |
||
|
|
AMD Ryzen 5 4600G
6C 12T @ 3.70 GHz |
||
|
|
AMD Ryzen 7 PRO 1700X
8C 16T @ 3.50 GHz |
||
|
|
Intel Xeon E5-1680 v2
8C 16T @ 3.00 GHz |
||
Cinebench R15 (Single-Core)
Cinebench R15 is the successor of Cinebench 11.5 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.|
|
Intel Core i7-8086K
6C 12T @ 5.00 GHz |
||
|
|
Intel Core i9-9900K
8C 16T @ 5.00 GHz |
||
|
|
AMD Ryzen 9 3950X
16C 32T @ 4.70 GHz |
||
|
|
Intel Core i5-11400
6C 12T @ 4.40 GHz |
||
|
|
Intel Core i5-11400F
6C 12T @ 4.40 GHz |
||
|
|
Intel Core i5-10600KF
6C 12T @ 4.80 GHz |
||
|
|
Intel Core i5-10600K
6C 12T @ 4.80 GHz |
||
Cinebench R15 (Multi-Core)
Cinebench R15 is the successor of Cinebench 11.5 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.|
|
Intel Core i5-10600K
6C 12T @ 4.50 GHz |
||
|
|
Intel Core i5-10600KF
6C 12T @ 4.50 GHz |
||
|
|
Intel Core i9-9980HK
8C 16T @ 3.40 GHz |
||
|
|
Intel Core i5-11400
6C 12T @ 4.20 GHz |
||
|
|
Intel Core i5-11400F
6C 12T @ 4.20 GHz |
||
|
|
Intel Xeon E5-2658 v3
12C 24T @ 2.50 GHz |
||
|
|
Intel Xeon E5-2660 v3
10C 20T @ 3.00 GHz |
||
Benchmarks
Cinebench 2024 (SC)
177 entries
177 entries
Cinebench 2024 (MC)
178 entries
178 entries
Cinebench R23 (SC)
527 entries
527 entries
Cinebench R23 (MC)
504 entries
504 entries
Geekbench 5 (SC)
2,399 entries
2,399 entries
Geekbench 5 (MC)
2,372 entries
2,372 entries
Geekbench 6 (SC)
1,648 entries
1,648 entries
Geekbench 6 (MC)
1,599 entries
1,599 entries
Cinebench R20 (SC)
641 entries
641 entries
Cinebench R20 (MC)
588 entries
588 entries
FP32 SP (iGPU)
1,925 entries
1,925 entries
3DMark Timespy (iGPU)
478 entries
478 entries
Blender 3.1 Benchmark
212 entries
212 entries
PassMark CPU-Mark
2,319 entries
2,319 entries
CPU-Z Benchmark 17 (SC)
222 entries
222 entries
CPU-Z Benchmark 17 (MC)
725 entries
725 entries
Monero Hashrate
94 entries
94 entries
V-Ray CPU-Render
249 entries
249 entries
Cinebench R15 (SC)
1,102 entries
1,102 entries
Cinebench R15 (MC)
1,097 entries
1,097 entries
Description of the processor
The Intel Core i5-11400 is a mainstream 6-core processor from Intel. The processor can clock its 6 CPU cores with up to 2.8 GHz, whereby in turbo mode significantly higher clock frequencies of 3.8 GHz (multi-core load) or 4.2 GHz (single-core load) are possible. Since it is not a "K" processor, the clock frequencies of the processor cannot be overclocked manually.An Intel Iris Xe Graphics 24 (Rocket Lake S) is used as the internal graphics in the Intel Core i5-11400. This is based on Intels XE graphics, which was introduced in 2020, but has been trimmed in the desktop processors so that it works with just 24 execution units, while the mobile processors rely on iGPUs with up to 96 execution units. Accordingly, the iGPU in the Intel Core i5-11400 is not suitable for modern games; a dedicated graphics card is recommended for this. After all, the new and free video codec AV1 is already being decoded in hardware by the iGPU.
Up to 128 GB of RAM (up to DDR4-3200) are supported by the Intel Core i5-11400. The Intel Core i5-11400 can address the main memory via two memory channels (dual-channel mode) in order to double the memory bandwidth. Approx. 55 GB / s are possible if two DDR4-3200 modules are used.
The Intel Core i5-11400 is based on Intels Rocket Lake architecture and is still manufactured in 14 nm. Rocket Lake is a "backport" of the newer "Tiger Lake" architecture, which is based on 10 nm. Due to manufacturing bottlenecks, Intel decided to cut the desktop processors a bit (e.g. in the maximum number of cores and in the iGPU) and to manufacture them again in 14 nm. The clock frequencies are therefore a bit lower than expected. The level 3 cache of the Intel Core i5-11400 is 12 MB in size.
Popular comparisons
