Intel Core i5-13600KF Benchmark, Test and specs

Last updated: 2024-09-12

The Intel Core i5-13600KF has 14 cores with 20 threads and is based on the 13. gen of the Intel Core i5 series. The processor uses a mainboard with the LGA 1700 socket and was released in Q4/2022. The Intel Core i5-13600KF scores 1,955 points in the Geekbench 5 single-core benchmark. In the Geekbench 5 multi-core benchmark, the result is 16,227 points.

At a glance
Name:	Intel Core i5-13600KF
Family:	Intel Core i5 (336)
CPU group:	Intel Core i 13000 (18)
Architecture:	Raptor Lake S
Technology:	10 nm
Segment:	Desktop
Generation:	13
Predecessor:	Intel Core i5-12600KF
Successor:	Intel Core i5-14600KF

CPU Cores and Base Frequency

The Intel Core i5-13600KF has 14 CPU cores and can calculate 20 threads in parallel. The clock frequency of the Intel Core i5-13600KF is 3.50 GHz (5.10 GHz). The number of CPU cores greatly affects the speed of the processor and is an important performance indicator.

CPU Cores / Threads:	14 / 20
Core architecture:	hybrid (big.LITTLE)
A-Core:	6x Raptor Cove
B-Core:	8x Gracemont

Hyperthreading / SMT:	Yes
Overclocking:	Intel Thermal Velocity Boost Intel Turbo Boost Max Intel XMP
A-Core Frequency:	3.50 GHz (5.10 GHz)
B-Core Frequency:	2.60 GHz (3.90 GHz)

NPU AI performance

The performance values of the processor's AI unit. The isolated NPU performance is specified here, the total AI performance (NPU+CPU+iGPU) can be higher. Processors with support for artificial intelligence (AI) and machine learning (ML) can process many calculations, especially audio, image and video processing, much faster than classic processors.

AI hardware:	--
AI specifications:	--
NPU + CPU + iGPU:	--

Integrated graphics (iGPU)

The Intel Core i5-13600KF has integrated graphics, called iGPU for short. Specifically, the Intel Core i5-13600KF uses the no iGPU, which has -- texture shaders and -- execution units. The iGPU uses the system's main memory as graphics memory and sits on the processor's die.

GPU name:	no iGPU
GPU frequency:
GPU (Turbo):	No turbo
Compute units:	--
Shader:	--
Hardware Raytracing:	No
Release date:

Max. displays:
Generation:	--
Direct X:	--
Technology:
Max. GPU Memory:	--
Frame Generation:	No

Hardware codec support

A photo or video codec that is accelerated in hardware can greatly accelerate the working speed of a processor and extend the battery life of notebooks or smartphones when playing videos.

h265 / HEVC (8 bit):	No
h265 / HEVC (10 bit):	No
h264:	No
VP8:	No
VP9:	No

AV1:	No
AVC:	No
VC-1:	No
JPEG:	No

Memory type:	Memory bandwidth:
Memory & PCIe The processor can use up to 192 GB memory in 2 (Dual Channel) memory channels. The maximum memory bandwidth is 89.6 GB/s. The memory type as well as the amount of memory can greatly affect the speed of the system.

DDR5-5600 DDR4-3200	89.6 GB/s 51.2 GB/s
Max. Memory:	192 GB
Memory channels:	2 (Dual Channel)
ECC:	Yes
PCIe:	5.0 x 20
PCIe Bandwidth:	78.8 GB/s

Thermal Management The thermal design power (TDP for short) of the processor is 125 W. The TDP specifies the necessary cooling solution that is required to cool the processor sufficiently. The TDP usually gives a rough idea of the actual power consumption of the CPU.

TDP (PL1 / PBP):	125 W
TDP (PL2):	181 W
TDP up:	--
TDP down:	--
Tjunction max.:	100 °C

Technical details

The Intel Core i5-13600KF is made in 10 nm. The smaller the manufacturing process of a CPU, the more modern and energy-efficient it is. Overall, the processor has 44.00 MB cache. A large cache can greatly speed up the processor's speed in some cases such as games.

Technology:	10 nm
Chip design:	Monolithic
Socket:	LGA 1700
L2-Cache:	20.00 MB
L3-Cache:	24.00 MB
AES-NI:	Yes
Operating systems:	Windows 10, Windows 11, Linux

Virtualization:	VT-x, VT-x EPT, VT-d
Instruction set (ISA):	x86-64 (64 bit)
ISA extensions:	SSE4.1, SSE4.2, AVX2, AVX2+
Release date:	Q4/2022
Release price:	294 $
Part Number:	--
Documents:	Technical data sheet

Intel Core i5-13600KF
14C 20T @ 3.50 GHz (5.10 GHz)

buy now on Amazon and save!

Rate this processor

Here you can rate this processor to help other visitors make their purchase decision. The average rating of this processor is 4.7 stars (96 ratings). Rate now:

Benchmark results

The benchmark results for the Intel Core i5-13600KF have been carefully checked by us. We only publish benchmark results that have been created by us or that have been submitted by a visitor and then checked by a team member. All results are based on and fullfill our benchmark guidelines.

Screenshots:

Cinebench 2024 (Single-Core)

The Cinebench 2024 benchmark is based on the Redshift rendering engine, which is also used in Maxon's 3D program Cinema 4D. The benchmark runs are each 10 minutes long to test whether the processor is limited by its heat generation.


	AMD Ryzen 7 7700X 8C 16T @ 5.40 GHz	119
	Intel Core i7-13700 16C 24T @ 5.20 GHz	118
	Intel Core i7-13700F 16C 24T @ 5.20 GHz	118
	Intel Core i5-13600KF 14C 20T @ 5.10 GHz	116
	AMD Ryzen 9 7900 12C 24T @ 5.40 GHz	116
	Intel Core i5-13600K 14C 20T @ 5.10 GHz	116
	AMD Ryzen Threadripper 7980X 64C 128T @ 5.10 GHz	115

Cinebench 2024 (Multi-Core)

The Multi-Core test of the Cinebench 2024 benchmark uses all cpu cores to render using the Redshift rendering engine, which is also used in Maxons Cinema 4D. The benchmark run is 10 minutes long to test whether the processor is limited by its heat generation.


	Intel Core i5-14600K 14C 20T @ 5.30 GHz	1388
	AMD Ryzen 9 3950X 16C 32T @ 4.70 GHz	1325
	AMD Ryzen 7 9800X3D 8C 16T @ 5.25 GHz	1308
	Intel Core i5-13600KF 14C 20T @ 5.10 GHz	1282
	Intel Core i5-13600K 14C 20T @ 5.10 GHz	1282
	AMD Ryzen 7 9700X 8C 16T @ 5.50 GHz	1255
	AMD Ryzen 9 5900X 12C 24T @ 4.80 GHz	1189

Cinebench R23 (Single-Core)

Cinebench R23 is the successor of Cinebench R20 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.


	AMD Ryzen Threadripper 7970X 32C 64T @ 5.30 GHz	1988
	Intel Core i9-12900 16C 24T @ 5.10 GHz	1988
	Intel Core i9-12900F 16C 24T @ 5.10 GHz	1988
	Intel Core i5-13600KF 14C 20T @ 5.10 GHz	1976
	AMD Ryzen 5 7600X 6C 12T @ 5.30 GHz	1976
	Intel Core i5-13600K 14C 20T @ 5.10 GHz	1976
	AMD Ryzen 5 9600X3D 6C 12T @ 4.90 GHzNot verified	1975

Cinebench R23 (Multi-Core)

Cinebench R23 is the successor of Cinebench R20 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.


	Intel Core i5-14600K 14C 20T @ 5.30 GHz	24683
	Intel Core i9-10980XE 18C 36T @ 4.30 GHz	24309
	AMD Ryzen 9 3950X 16C 32T @ 4.00 GHz	24050
	Intel Core i5-13600KF 14C 20T @ 5.10 GHz	23960
	Intel Core i5-13600K 14C 20T @ 5.10 GHz	23960
	AMD Ryzen 7 9800X3D 8C 16T @ 5.20 GHz	23163
	AMD Ryzen 7 9700X 8C 16T @ 4.70 GHz	23127

Geekbench 6 (Single-Core)

Geekbench 6 is a partial load benchmark for modern computers, notebooks and smartphones. In the single-core test, only the fastest CPU core is measured. The test run simulates the performance in practice.


	AMD Ryzen 5 8600G 6C 12T @ 5.00 GHz	2671
	AMD Ryzen 5 PRO 8600G 6C 12T @ 5.00 GHz	2671
	Intel Core i9-12900KF 16C 24T @ 5.20 GHz	2664
	Intel Core i5-13600KF 14C 20T @ 5.10 GHz	2639
	Intel Core i5-13600K 14C 20T @ 5.10 GHz	2639
	Intel Core i9-12900 16C 24T @ 5.10 GHz	2637
	Intel Core i9-12900F 16C 24T @ 5.10 GHz	2637

Geekbench 6 (Multi-Core)

The practical Geekbench 6 multi-core benchmark tests the system's performance under partial load. The processor's maximum power consumption is far from being used up.


	Intel Core i9-12900KS 16C 24T @ 5.20 GHz	16455
	Intel Core i9-14901KE 8C 16T @ 5.70 GHz	16265
	Intel Core i9-12900K 16C 24T @ 5.00 GHz	16244
	Intel Core i5-13600KF 14C 20T @ 5.10 GHz	16192
	Intel Core i5-13600K 14C 20T @ 5.10 GHz	16192
	AMD Ryzen 7 9700X 8C 16T @ 4.70 GHz	16135
	Intel Core i5-14600 14C 20T @ 5.00 GHz	16110

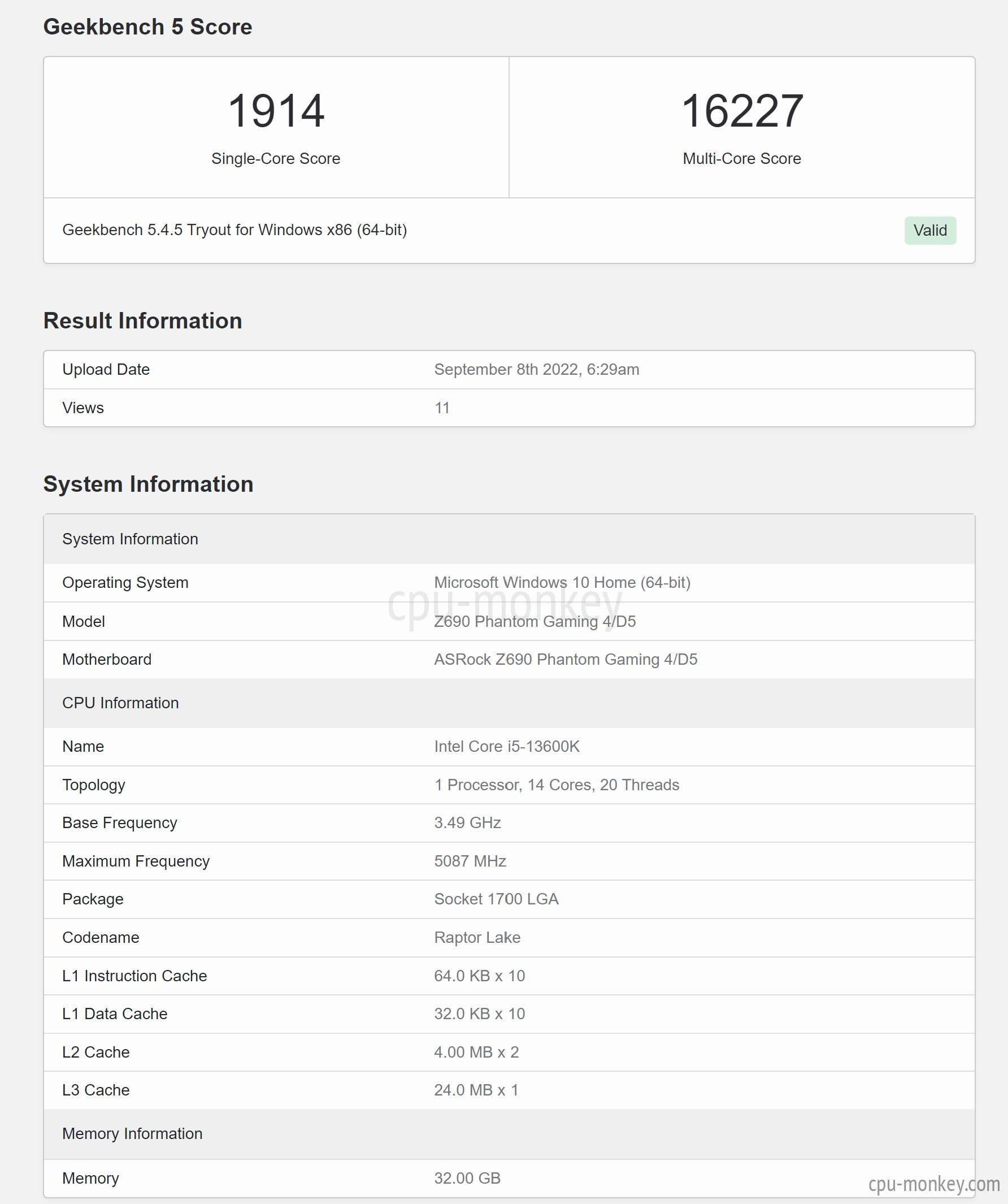

Geekbench 5, 64bit (Single-Core)

Geekbench 5 is a cross plattform benchmark that heavily uses the systems memory. A fast memory will push the result a lot. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.


	Intel Core i9-12900 16C 24T @ 5.10 GHz	1968
	AMD Ryzen 5 8500G 6C 12T @ 5.00 GHz	1965
	Intel Core i5-12600 6C 12T @ 4.80 GHz	1958
	Intel Core i5-13600KF 14C 20T @ 5.10 GHz	1955
	Intel Core i5-13600K 14C 20T @ 5.10 GHz	1955
	Intel Core i9-12900E 16C 24T @ 5.00 GHz	1952
	AMD Ryzen 5 8600G 6C 12T @ 5.00 GHz	1947

Geekbench 5, 64bit (Multi-Core)

Geekbench 5 is a cross plattform benchmark that heavily uses the systems memory. A fast memory will push the result a lot. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.


	Intel Xeon Gold 6254 18C 36T @ 3.50 GHz	16429
	Intel Xeon Gold 6210U 20C 40T @ 2.50 GHz	16392
	Intel Xeon Gold 6326 16C 32T @ 3.30 GHz	16254
	Intel Core i5-13600KF 14C 20T @ 5.10 GHz	16227
	Intel Core i5-13600K 14C 20T @ 5.10 GHz	16227
	Intel Core i9-9990XE 14C 28T @ 4.00 GHz	16199
	Intel Xeon Gold 6246R 16C 32T @ 3.60 GHz	16128

Cinebench R20 (Single-Core)

Cinebench R20 is the successor of Cinebench R15 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.


	AMD Ryzen 9 7900X 12C 24T @ 5.60 GHz	781
	Intel Core i9-12900K 16C 24T @ 5.20 GHz	779
	Intel Core i9-12900KF 16C 24T @ 5.20 GHz	779
	Intel Core i5-13600KF 14C 20T @ 5.10 GHz	775
	Intel Core i5-13600K 14C 20T @ 5.10 GHz	775
	AMD Ryzen Threadripper 7970X 32C 64T @ 5.30 GHz	773
	AMD Ryzen 7 7700X 8C 16T @ 5.40 GHz	773

Cinebench R20 (Multi-Core)

Cinebench R20 is the successor of Cinebench R15 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.


	Intel Core i9-12900 16C 24T @ 4.20 GHz	10097
	Intel Core i9-12900F 16C 24T @ 4.20 GHz	10097
	AMD Ryzen Threadripper 2970WX 24C 48T @ 3.00 GHz	10008
	Intel Core i5-13600KF 14C 20T @ 5.10 GHz	9329
	Intel Core i5-13600K 14C 20T @ 5.10 GHz	9329
	Intel Xeon Gold 6126 12C 24T @ 3.00 GHz	9189
	AMD Ryzen 9 3950X 16C 32T @ 4.00 GHz	9148

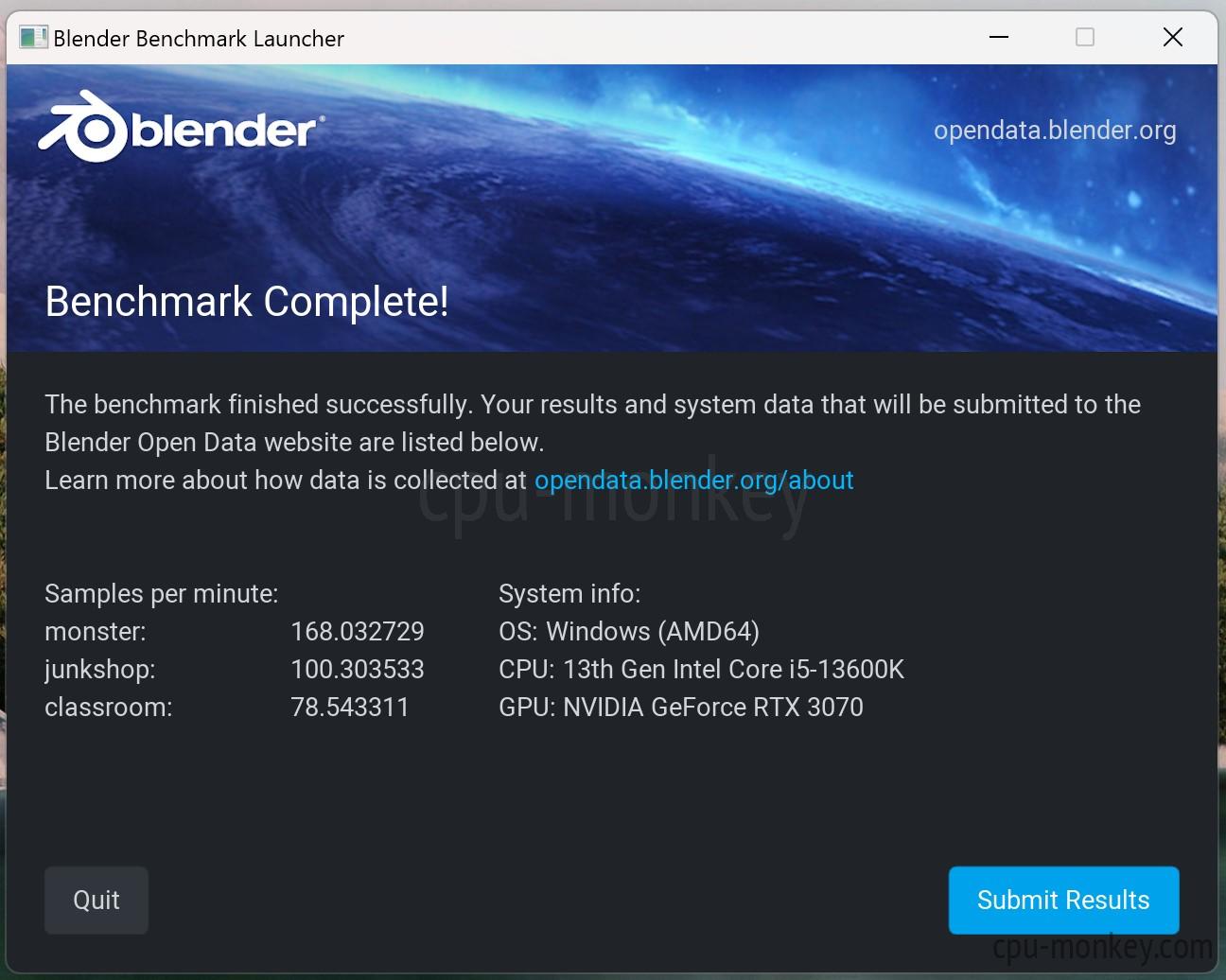

Blender 3.1 Benchmark

In the Blender Benchmark 3.1, the scenes "monster", "junkshop" and "classroom" are rendered and the time required by the system is measured. In our benchmark we test the CPU and not the graphics card. Blender 3.1 was presented as a standalone version in March 2022.


	Intel Core i9-12900K 16C 24T @ 5.00 GHz	364
	Intel Core i9-12900KF 16C 24T @ 5.00 GHz	364
	Intel Core i5-13600K 14C 20T @ 5.10 GHz	348
	Intel Core i5-13600KF 14C 20T @ 5.10 GHz	347
	Intel Core i7-12700KF 12C 20T @ 4.70 GHz	319
	Intel Core i7-12700K 12C 20T @ 4.70 GHz	319
	AMD Ryzen 9 5900X 12C 24T @ 4.50 GHz	308

Estimated results for PassMark CPU Mark

Some of the CPUs listed below have been benchmarked by CPU-monkey. However the majority of CPUs have not been tested and the results have been estimated by a CPU-monkey’s secret proprietary formula. As such they do not accurately reflect the actual Passmark CPU mark values and are not endorsed by PassMark Software Pty Ltd.


	Intel Core i5-14600K 14C 20T @ 5.30 GHz	38880
	Intel Core i5-14600KF 14C 20T @ 5.30 GHz	38880
	Intel Xeon Gold 6248R 24C 48T @ 3.00 GHz	38612
	Intel Core i5-13600KF 14C 20T @ 5.10 GHz	38449
	Intel Core i5-13600K 14C 20T @ 5.10 GHz	38449
	Intel Core i7-14700T 20C 28T @ 5.00 GHz	38230
	Intel Xeon Gold 6346 16C 32T @ 3.60 GHz	37728

CPU-Z Benchmark 17 (Single-Core)

The CPU-Z benchmark measures a processor's performance by measuring the time it takes the system to complete all benchmark calculations. The faster the benchmark is completed, the higher the score.


	Intel Core i9-13900 24C 32T @ 5.60 GHz	881
	AMD Ryzen 9 9900X 12C 24T @ 5.60 GHz	878
	AMD Ryzen 5 9600X 6C 12T @ 5.40 GHz	862
	Intel Core i5-13600KF 14C 20T @ 5.10 GHz	829
	Intel Core i5-13600K 14C 20T @ 5.10 GHz	829
	Intel Core i9-12900KF 16C 24T @ 5.20 GHz	819
	Intel Core i9-12900K 16C 24T @ 5.20 GHz	817

CPU-Z Benchmark 17 (Multi-Core)

The CPU-Z benchmark measures a processor's performance by measuring the time it takes the system to complete all benchmark calculations. The faster the benchmark is completed, the higher the score.


	Intel Core i9-7980XE 18C 36T @ 2.60 GHz	10563
	Intel Core i9-13900 24C 32T @ 2.00 GHz	10062
	Intel Core i9-13900F 24C 32T @ 2.00 GHz	10062
	Intel Core i5-13600KF 14C 20T @ 3.50 GHz	9848
	Intel Core i5-13600K 14C 20T @ 3.50 GHz	9848
	Intel Core i9-10980XE 18C 36T @ 3.00 GHz	9733
	AMD Ryzen 9 5900X 12C 24T @ 3.70 GHz	9520

Cinebench R15 (Single-Core)

Cinebench R15 is the successor of Cinebench 11.5 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.


	Intel Core i9-12900K 16C 24T @ 5.20 GHz	294
	Intel Core i9-12900KF 16C 24T @ 5.20 GHz	294
	Intel Core i9-12900KS 16C 24T @ 5.50 GHz	294
	Intel Core i5-13600KF 14C 20T @ 5.10 GHz	290
	Intel Core i5-13600K 14C 20T @ 5.10 GHz	290
	Intel Core i9-12900 16C 24T @ 5.10 GHz	287
	Intel Core i9-12900F 16C 24T @ 5.10 GHz	287

Cinebench R15 (Multi-Core)

Cinebench R15 is the successor of Cinebench 11.5 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.


	Intel Core i9-10980XE 18C 36T @ 4.30 GHz	3800
	Intel Xeon Platinum 8164 26C 52T @ 2.60 GHz	3720
	AMD Ryzen 9 5900X 12C 24T @ 4.50 GHz	3684
	Intel Core i5-13600KF 14C 20T @ 5.10 GHz	3652
	Intel Core i5-13600K 14C 20T @ 5.10 GHz	3652
	Intel Xeon Platinum 8170M 26C 52T @ 2.50 GHz	3596
	Intel Xeon Platinum 8170 26C 52T @ 2.50 GHz	3596

CPU performance per watt (efficiency)

Efficiency of the processor under full load in the Cinebench R23 (multi-core) benchmark. The benchmark result is divided by the average energy required (CPU package power in watts). The higher the value, the more efficient the CPU is under full load.


	Intel Core i5-13500 21,216 CB R23 MC @ 147 W	144
	Intel Core i7-13700K 31,062 CB R23 MC @ 220 W	141
	Intel Core i7-13700KF 31,062 CB R23 MC @ 220 W	141
	Intel Core i5-13600KF 23,960 CB R23 MC @ 173 W	139
	Intel Core i5-13600K 23,960 CB R23 MC @ 173 W	139
	Intel Core i5-12500 12,974 CB R23 MC @ 94 W	138
	AMD Ryzen 5 5600G 10,202 CB R23 MC @ 74 W	137

Benchmarks

Cinebench 2024 (SC)
352 entries

Cinebench 2024 (MC)
349 entries

Cinebench R23 (SC)
637 entries

Cinebench R23 (MC)
618 entries

Geekbench 6 (SC)
1,867 entries

Geekbench 6 (MC)
1,801 entries

Geekbench 5 (SC)
2,508 entries

Geekbench 5 (MC)
2,475 entries

Cinebench R20 (SC)
663 entries

Cinebench R20 (MC)
611 entries

Blender 3.1 Benchmark
212 entries

PassMark CPU-Mark
2,446 entries

CPU-Z Benchmark 17 (SC)
240 entries

CPU-Z Benchmark 17 (MC)
742 entries

V-Ray CPU-Render
250 entries

Cinebench R15 (SC)
1,108 entries

Cinebench R15 (MC)
1,104 entries

CPU performance per watt (efficiency)
138 entries

News and articles for the Intel Core i5-13600KF

Intel Microcode 0x129 Update increases the voltage and cpu temperature on my i5-13600K!

Posted by Stefan on 2024-09-09

I would like to share my experiences with the latest Intel microcode update (0x129) with you. After updating to the latest BIOS version of my mainboard, not only was the latest microcode active, but the BIOS now has an Intel Baseline Profile, which sets or limits certain voltage and power supply settings in the BIOS. I compare the results with the older microcode 0x104, which still can also be set in the new BIOS.

How to check if your Intel 13/14 gen cpu is affected by instability problems

Posted by Stefan on 2024-08-02

Maybe you have heard of problems with Intels Raptor Lake CPUs (13/14 Gen Intel Core i) that have degradation problems due to high voltage and therefore can crash in some situations like gaming. We show you an easy way to check if your cpu is affected by using Intels own Processor Diagnostic Tool.

Description of the processor

The Intel Core i5-13600KF has 14 CPU cores, which are divided into 6 performance cores (P cores) and 8 efficiency cores (E cores). The P cores are based on the Raptor Cove architecture and are similarly fast per clock cycle (IPC) compared to their predecessors. However, Intel was able to increase the speed of its 13th generation Intel Core i processors by significantly increasing the clock frequencies.

The E cores of the Intel Core i5-13600KF are based on the same architecture (Gracemont) as in the previous model, the Intel Core i5-12600KF. However, Intel has doubled the number of E cores in the Intel Core i5-13600KF from 4 to 8 now. This enabled the Intel Core i5-13600KF to increase by almost 30 percent compared to the previous model, especially in multi-core applications.

In single-core applications, the new CPU is only 5 percent faster than the Intel Core i5-12600KF on average. This is particularly noticeable in computer games. The clock frequency is a maximum of 5.1 GHz in turbo mode while the base clock is 3.5 GHz.

The higher clock frequencies and the doubling of the E cores also increase the energy consumption of the processor. The TDP (PL1) is 125 watts, but the processor almost always operates at its TDP (PL2) of 181 watts in multi-core scenarios.

The Intel Core i5-13600KF supports DDR4 and DDR5 memory up to a speed of DDR4-3200 or DDR5-5600. As with almost all modern desktop processors from AMD and Intel, modules with faster speeds can also be installed. Up to 128 GB of RAM is supported. When using two DDR5-5600 memory modules in dual-channel mode, the memory bandwidth is 89.6 GB per second.

The processor supports the new PCIe 5.0 interface with 20 lines. As of 2022, however, all published graphics cards still use the PCIe 4.0 interface, with which the processor is backwards compatible.

Popular comparisons


1.		Intel Core i5-13600KF vs Intel Core i5-13600K
2.		Intel Core i7-12700KF vs Intel Core i5-13600KF
3.		Intel Core i7-13700KF vs Intel Core i5-13600KF
4.		Intel Core i5-13600KF vs Intel Core i5-14600KF
5.		Intel Core i5-13400F vs Intel Core i5-13600KF
6.		Intel Core i5-13600KF vs AMD Ryzen 5 7600X
7.		Intel Core i5-13600KF vs Intel Core i5-12600KF
8.		Intel Core i5-13600KF vs AMD Ryzen 7 7700X
9.		Intel Core i5-13600KF vs Intel Core i7-12700F
10.		Intel Core i5-13600KF vs Intel Core i7-13700F

back to index
