Intel Xeon E5-2696 v4 Benchmark, Test and specs
Last updated:
The Intel Xeon E5-2696 v4 has 22 cores with 44 threads and is based on the 6. gen of the Intel Xeon E5 series. The processor uses a mainboard with the LGA 2011-3 socket and was released in Q1/2016.
| Name: | Intel Xeon E5-2696 v4 |
|---|---|
| Family: | Intel Xeon E5 (73) |
| CPU group: | Intel Xeon E5 v4 (25) |
| Architecture: | Broadwell E |
| Technology: | 14 nm |
| Segment: | Desktop |
| Generation: | 6 |
| Predecessor: | -- |
| Successor: | -- |
CPU Cores and Base Frequency
The Intel Xeon E5-2696 v4 has 22 CPU cores and can calculate 44 threads in parallel. The clock frequency of the Intel Xeon E5-2696 v4 is 2.20 GHz (3.60 GHz). The number of CPU cores greatly affects the speed of the processor and is an important performance indicator.
| CPU Cores / Threads: | 22 / 44 |
|---|---|
| Core architecture: | normal |
| Cores: | 22x |
| Hyperthreading / SMT: | Yes |
|---|---|
| Overclocking: | No |
| Frequency: | 2.20 GHz |
| Turbo Frequency (1 Core): | 3.60 GHz |
| Turbo Frequency (22 Cores): | -- |
Memory & PCIeThe processor can use up to 1536 GB memory in 4 (Quad Channel) memory channels. The maximum memory bandwidth is 76.8 GB/s. The memory type as well as the amount of memory can greatly affect the speed of the system. |
|
| Memory type: | Memory bandwidth: |
|---|---|
| DDR4-2400 | 76.8 GB/s |
| Max. Memory: | 1536 GB |
| Memory channels: | 4 (Quad Channel) |
| ECC: | Yes |
| PCIe: | 3.0 x 40 |
| PCIe Bandwidth: | 39.4 GB/s |
Thermal ManagementThe thermal design power (TDP for short) of the processor is 150 W. The TDP specifies the necessary cooling solution that is required to cool the processor sufficiently. The TDP usually gives a rough idea of the actual power consumption of the CPU. |
|
|---|---|
| TDP (PL1 / PBP): | 150 W |
| TDP (PL2): | -- |
| TDP up: | -- |
| TDP down: | -- |
| Tjunction max.: | -- |
Technical details
The Intel Xeon E5-2696 v4 is made in 14 nm. The smaller the manufacturing process of a CPU, the more modern and energy-efficient it is. Overall, the processor has 55.00 MB cache. A large cache can greatly speed up the processor's speed in some cases such as games.
| Technology: | 14 nm |
|---|---|
| Chip design: | Monolithic |
| Socket: | LGA 2011-3 |
| L2-Cache: | -- |
| L3-Cache: | 55.00 MB |
| AES-NI: | Yes |
| Operating systems: | Windows 10, Linux |
| Virtualization: | VT-x, VT-x EPT, VT-d |
|---|---|
| Instruction set (ISA): | x86-64 (64 bit) |
| ISA extensions: | SSE4.1, SSE4.2, AVX2 |
| Release date: | Q1/2016 |
| Release price: | -- |
| Part Number: | -- |
| Documents: | -- |
22C 44T @ 2.20 GHz (3.60 GHz)
buy now on Amazon and save!
Rate this processor
Benchmark results
The benchmark results for the Intel Xeon E5-2696 v4 have been carefully checked by us. We only publish benchmark results that have been created by us or that have been submitted by a visitor and then checked by a team member. All results are based on and fullfill our benchmark guidelines.

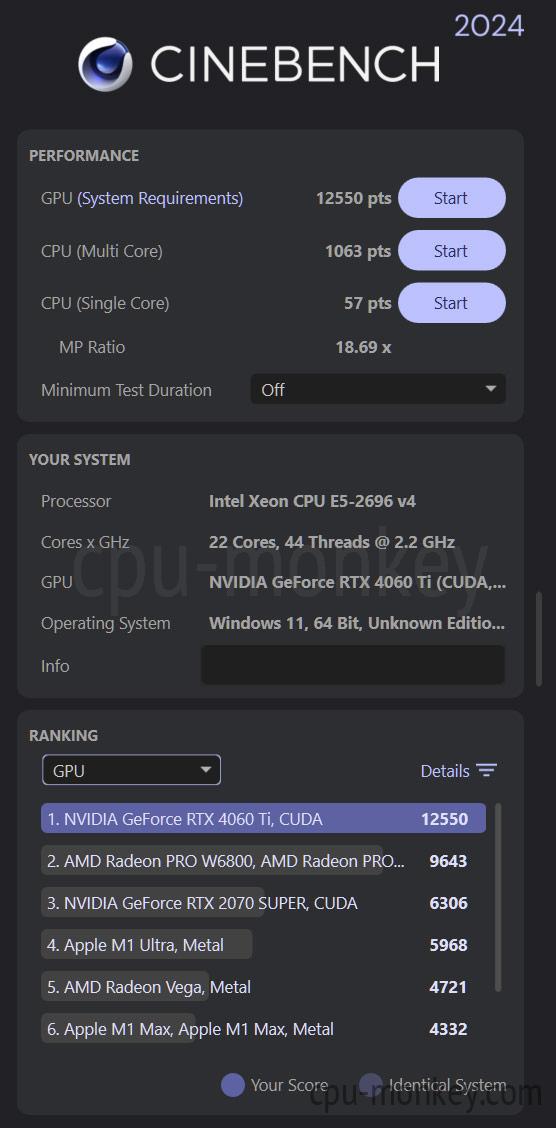

Screenshots:
Screenshots:
Cinebench 2024 Single-Core
The Cinebench 2024 benchmark is based on the Redshift rendering engine, which is also used in Maxon's 3D program Cinema 4D. The benchmark runs are each 10 minutes long to test whether the processor is limited by its heat generation.
|
AMD Ryzen 5 1600X
6C 12T @ 3.70 GHz |
||
|
AMD Ryzen Threadripper 1920X
12C 24T @ 4.00 GHz |
||
|
Intel Core i7-4770K
4C 8T @ 3.90 GHz |
||
|
Intel Xeon E5-2696 v4
22C 44T @ 3.60 GHz |
||
|
AMD Ryzen 7 1700
8C 16T @ 3.70 GHz |
||
|
Intel Core i5-6500
4C 4T @ 3.60 GHz |
||
|
Intel Core i7-5960X
8C 16T @ 3.50 GHz |
||
Cinebench 2024 Multi-Core
The Multi-Core test of the Cinebench 2024 benchmark uses all cpu cores to render using the Redshift rendering engine, which is also used in Maxons Cinema 4D. The benchmark run is 10 minutes long to test whether the processor is limited by its heat generation.
|
|
AMD Ryzen 7 7700X
8C 16T @ 5.40 GHz |
||
|
AMD Ryzen 9 3900XT
12C 24T @ 4.70 GHz |
||
|
|
AMD Ryzen 9 3900X
12C 24T @ 4.60 GHz |
||
|
|
Intel Xeon E5-2696 v4
22C 44T @ 3.60 GHz |
||
|
|
AMD Ryzen 7 7700
8C 16T @ 5.30 GHz |
||
|
|
Intel Core i7-12700F
12C 20T @ 4.90 GHz |
||
|
|
Intel Core i7-12700
12C 20T @ 4.90 GHz |
||
Geekbench 6 Single-Core
Geekbench 6 is a partial load benchmark for modern computers, notebooks and smartphones. In the single-core test, only the fastest CPU core is measured. The test run simulates the performance in practice.
|
|
Intel Xeon E5-2699 v4
22C 44T @ 3.60 GHz |
||
|
|
Intel Xeon E5-2667 v4
8C 16T @ 3.60 GHz |
||
|
|
Intel Xeon E5-2698 v3
16C 32T @ 3.60 GHz |
||
|
|
Intel Xeon E5-2696 v4
22C 44T @ 3.60 GHz |
||
|
Intel Xeon Silver 4210
10C 20T @ 3.20 GHz |
||
|
|
Intel Core i5-6600T
4C 4T @ 3.50 GHz |
||
|
|
Intel Xeon E5-2637 v3
4C 8T @ 3.70 GHz |
||
Geekbench 6 Multi-Core
The practical Geekbench 6 multi-core benchmark tests the system's performance under partial load. The processor's maximum power consumption is far from being used up.
|
Intel Xeon E-2386G
6C 12T @ 3.50 GHz |
||
|
|
AMD Ryzen 5 5600X3D
6C 12T @ 4.20 GHz |
||
|
|
Intel Xeon E-2378
8C 16T @ 2.60 GHz |
||
|
|
Intel Xeon E5-2696 v4
22C 44T @ 2.20 GHz |
||
|
|
Intel Xeon E5-2699 v4
22C 44T @ 2.80 GHz |
||
|
Intel Core i9-7900X
10C 20T @ 4.00 GHz |
||
|
|
Intel Core i9-10900K
10C 20T @ 4.90 GHz |
||
Estimated results for PassMark CPU Mark
Some of the CPUs listed below have been benchmarked by CPU-monkey. However the majority of CPUs have not been tested and the results have been estimated by a CPU-monkey’s secret proprietary formula. As such they do not accurately reflect the actual Passmark CPU mark values and are not endorsed by PassMark Software Pty Ltd.
|
|
Intel Core i9-11900K
8C 16T @ 4.80 GHz |
||
|
|
Intel Core i9-9920X
12C 24T @ 4.30 GHz |
||
|
|
AMD Ryzen Threadripper 2920X
12C 24T @ 3.60 GHz |
||
|
|
Intel Xeon E5-2696 v4
22C 44T @ 2.20 GHz |
||
|
Intel Xeon Gold 6138T
20C 40T @ 2.80 GHz |
||
|
|
Intel Xeon Gold 5220
18C 36T @ 2.50 GHz |
||
|
|
Intel Xeon Gold 6152
22C 44T @ 2.60 GHz |
||
Benchmarks
Cinebench 2024 (SC)
362 entries
362 entries
Cinebench 2024 (MC)
359 entries
359 entries
Geekbench 6 (SC)
1,886 entries
1,886 entries
Geekbench 6 (MC)
1,820 entries
1,820 entries
PassMark CPU-Mark
2,457 entries
2,457 entries
