Intel Core i7-13700H Benchmark, Test and specs

Last updated:
The Intel Core i7-13700H has 14 cores with 20 threads and is based on the 13. gen of the Intel Core i7 series. The processor uses a mainboard with the BGA 1744 socket and was released in Q1/2023. The Intel Core i7-13700H scores 1,893 points in the Geekbench 5 single-core benchmark. In the Geekbench 5 multi-core benchmark, the result is 11,848 points.
Intel Core i7-13700H

CPU lineage

The segment in which we have classified the Intel Core i7-13700H. Here you can see if it is a desktop processor or a mobile processor or which processor may be the successor of the Intel Core i7-13700H.

Name: Intel Core i7-13700H
Family: Intel Core i7 (298)
CPU group: Intel Core i 13000H (26)
Architecture: Raptor Lake H
Segment: Mobile
Generation: 13
Predecessor: Intel Core i7-12700H
Successor: --

CPU Cores and Base Frequency

The Intel Core i7-13700H has 14 CPU cores and can calculate 20 threads in parallel. The clock frequency of the Intel Core i7-13700H is 2.40 GHz (5.00 GHz). The number of CPU cores greatly affects the speed of the processor and is an important performance indicator.

CPU Cores / Threads: 14 / 20
Core architecture: hybrid (big.LITTLE)
A-Core: 6x Raptor Cove
B-Core: 8x Gracemont
Hyperthreading / SMT: Yes
Overclocking: No
A-Core Frequency: 2.40 GHz (5.00 GHz)
B-Core Frequency: 1.80 GHz (3.70 GHz)

Internal Graphics

The Intel Core i7-13700H has integrated graphics, called iGPU for short. Specifically, the Intel Core i7-13700H uses the Intel Iris Xe Graphics 96 (Alder Lake), which has 768 texture shaders and 96 execution units. The iGPU uses the system's main memory as graphics memory and sits on the processor's die.

GPU name: Intel Iris Xe Graphics 96 (Alder Lake)
GPU frequency: 0.40 GHz
GPU (Turbo): 1.50 GHz
Compute units: 96
Shader: 768
Hardware Raytracing: No
Release date: Q1/2022
Max. displays: 4
Generation: 13
Direct X: 12.1
Technology: 10 nm
Max. GPU Memory: 32 GB
Frame Generation: No

Hardware codec support

A photo or video codec that is accelerated in hardware can greatly accelerate the working speed of a processor and extend the battery life of notebooks or smartphones when playing videos.

h265 / HEVC (8 bit): Decode / Encode
h265 / HEVC (10 bit): Decode / Encode
h264: Decode / Encode
VP8: Decode
VP9: Decode / Encode
AV1: Decode
AVC: Decode / Encode
VC-1: Decode
JPEG: Decode / Encode

Memory & PCIe

The processor can use up to 96 GB memory in 2 (Dual Channel) memory channels. The maximum memory bandwidth is 102.4 GB/s. The memory type as well as the amount of memory can greatly affect the speed of the system.

Memory type: Memory bandwidth:
LPDDR5-6400
LPDDR4X-4266
DDR5-5200
DDR4-3200
102.4 GB/s
68.2 GB/s
83.2 GB/s
51.2 GB/s
Max. Memory: 96 GB
Memory channels: 2 (Dual Channel)
ECC: Yes
PCIe: 5.0 x 28
PCIe Bandwidth: 110.3 GB/s

Thermal Management

The thermal design power (TDP for short) of the processor is 45 W. The TDP specifies the necessary cooling solution that is required to cool the processor sufficiently. The TDP usually gives a rough idea of the actual power consumption of the CPU.

TDP (PL1 / PBP): 45 W
TDP (PL2): 115 W
TDP up: --
TDP down: 35 W
Tjunction max.: 100 °C

Technical details

The Intel Core i7-13700H is made in 10 nm. The smaller the manufacturing process of a CPU, the more modern and energy-efficient it is. Overall, the processor has 24.00 MB cache. A large cache can greatly speed up the processor's speed in some cases such as games.

Technology: 10 nm
Chip design: Monolithic
Socket: BGA 1744
L2-Cache: --
L3-Cache: 24.00 MB
AES-NI: Yes
Operating systems: Windows 10, Windows 11, Linux
Virtualization: VT-x, VT-x EPT, VT-d
Instruction set (ISA): x86-64 (64 bit)
ISA extensions: SSE4.1, SSE4.2, AVX2, AVX2+
Release date: Q1/2023
Release price: 502 $
Part Number: --
Documents: Technical data sheet

Rate this processor

Here you can rate this processor to help other visitors make their purchase decision. The average rating of this processor is 3.9 stars (31 ratings). Rate now:

Benchmark results

Verified Benchmark results
The benchmark results for the Intel Core i7-13700H have been carefully checked by us. We only publish benchmark results that have been created by us or that have been submitted by a visitor and then checked by a team member. All results are based on and fullfill our benchmark guidelines.

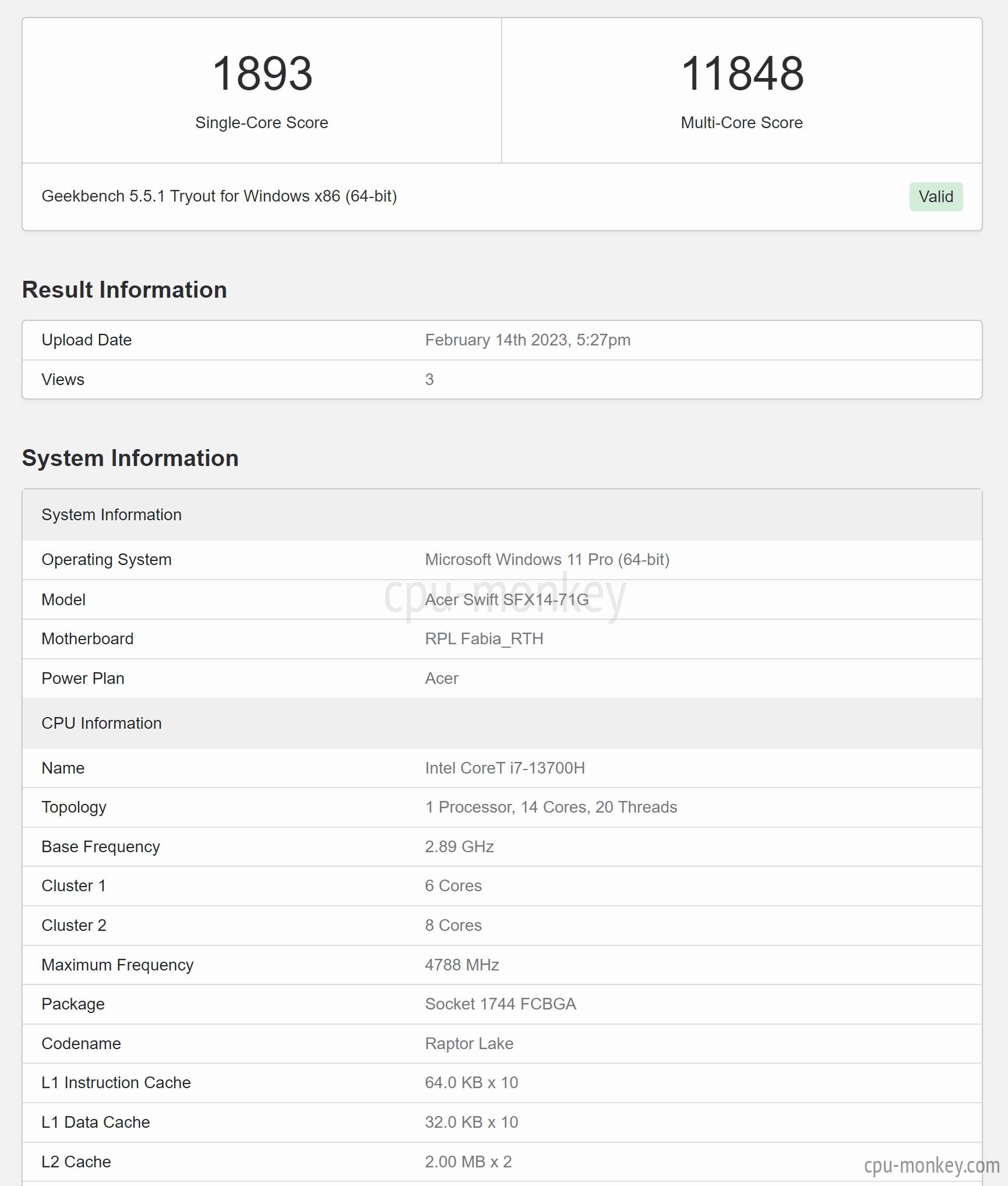

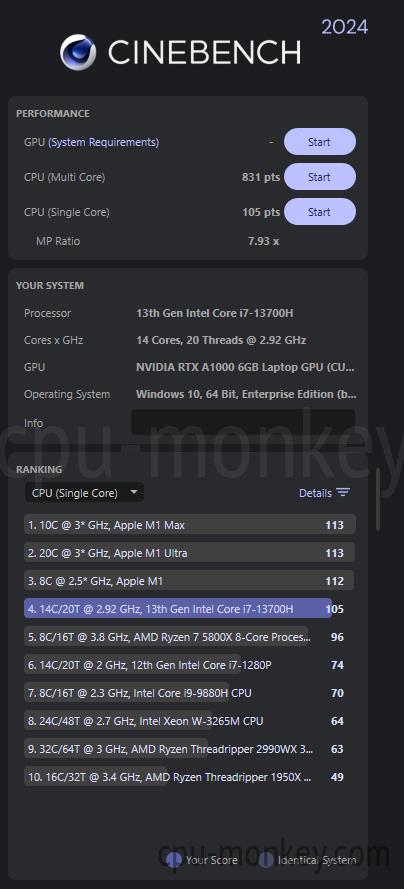

Screenshots:

Cinebench 2024 (Single-Core)

The Cinebench 2024 benchmark is based on the Redshift rendering engine, which is also used in Maxon's 3D program Cinema 4D. The benchmark runs are each 10 minutes long to test whether the processor is limited by its heat generation.
Intel Core i5-13400 Intel Core i5-13400
10C 16T @ 4.60 GHz
106
Intel Core i5-13400E Intel Core i5-13400E
10C 16T @ 4.60 GHz
106
Intel Core i5-13400F Intel Core i5-13400F
10C 16T @ 4.60 GHz
106
Intel Core i7-13700H Intel Core i7-13700H
14C 20T @ 5.00 GHz
105
Intel Core i5-12600KF Intel Core i5-12600KF
10C 16T @ 4.90 GHz
105
Intel Core i5-12600K Intel Core i5-12600K
10C 16T @ 4.90 GHz
105
AMD Ryzen 7 PRO 8700G AMD Ryzen 7 PRO 8700G
8C 16T @ 5.10 GHz
104

Cinebench 2024 (Multi-Core)

The Multi-Core test of the Cinebench 2024 benchmark uses all cpu cores to render using the Redshift rendering engine, which is also used in Maxons Cinema 4D. The benchmark run is 10 minutes long to test whether the processor is limited by its heat generation.
AMD Ryzen 5 7600 AMD Ryzen 5 7600
6C 12T @ 5.10 GHz
840
AMD Ryzen 5 PRO 7645 AMD Ryzen 5 PRO 7645
6C 12T @ 5.10 GHz
840
AMD Ryzen 7 5800X3D AMD Ryzen 7 5800X3D
8C 16T @ 4.50 GHz
835
Intel Core i7-13700H Intel Core i7-13700H
14C 20T @ 5.00 GHz
831
Intel Core i5-13400E Intel Core i5-13400E
10C 16T @ 4.60 GHz
821
Intel Core i5-13400 Intel Core i5-13400
10C 16T @ 4.60 GHz
821
Intel Core i5-13500H Intel Core i5-13500H
12C 16T @ 4.70 GHz
818

Geekbench 5, 64bit (Single-Core)

Geekbench 5 is a cross plattform benchmark that heavily uses the systems memory. A fast memory will push the result a lot. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.
AMD Ryzen Z1 Extreme AMD Ryzen Z1 Extreme
8C 16T @ 5.10 GHz
1917
Intel Core i7-13700T Intel Core i7-13700T
16C 24T @ 4.90 GHz
1916
Intel Xeon E-2378G Intel Xeon E-2378G
8C 16T @ 5.10 GHz
1908
Intel Core i7-13700H Intel Core i7-13700H
14C 20T @ 5.00 GHz
1893
Intel Core i7-13800HRE Intel Core i7-13800HRE
14C 20T @ 5.00 GHz
1893
Intel Core i7-13700TE Intel Core i7-13700TE
16C 24T @ 4.80 GHz
1893
Intel Core i7-13705H Intel Core i7-13705H
14C 20T @ 5.00 GHz
1893

Geekbench 5, 64bit (Multi-Core)

Geekbench 5 is a cross plattform benchmark that heavily uses the systems memory. A fast memory will push the result a lot. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.
Intel Core i7-13800HE Intel Core i7-13800HE
14C 20T @ 4.00 GHz
11875
Intel Core i7-13800HRE Intel Core i7-13800HRE
14C 20T @ 4.00 GHz
11875
AMD Ryzen 5 7600X AMD Ryzen 5 7600X
6C 12T @ 5.30 GHz
11874
Intel Core i7-13700H Intel Core i7-13700H
14C 20T @ 4.40 GHz
11848
Intel Core i7-13705H Intel Core i7-13705H
14C 20T @ 4.40 GHz
11848
Intel Core i7-13620H Intel Core i7-13620H
10C 16T @ 4.40 GHz
11766
Intel Xeon W-1290P Intel Xeon W-1290P
10C 20T @ 4.40 GHz
11689

Geekbench 6 (Single-Core)

Geekbench 6 is a benchmark for modern computers, notebooks and smartphones. What is new is an optimized utilization of newer CPU architectures, e.g. based on the big.LITTLE concept and combining CPU cores of different sizes. The single-core benchmark only evaluates the performance of the fastest CPU core, the number of CPU cores in a processor is irrelevant here.
Intel Core i7-13700T Intel Core i7-13700T
16C 24T @ 4.90 GHz
2537
Intel Core i7-1370P Intel Core i7-1370P
14C 20T @ 5.20 GHz
2536
Intel Core i7-13700HX Intel Core i7-13700HX
16C 24T @ 5.00 GHz
2534
Intel Core i7-13700H Intel Core i7-13700H
14C 20T @ 5.00 GHz
2531
Intel Core i7-13705H Intel Core i7-13705H
14C 20T @ 5.00 GHz
2531
Apple A16 Bionic Apple A16 Bionic
6C 6T @ 3.46 GHz
2531
Intel Core i9-13905H Intel Core i9-13905H
14C 20T @ 5.40 GHz
2528

Geekbench 6 (Multi-Core)

Geekbench 6 is a benchmark for modern computers, notebooks and smartphones. What is new is an optimized utilization of newer CPU architectures, e.g. based on the big.LITTLE concept and combining CPU cores of different sizes. The multi-core benchmark evaluates the performance of all of the processor's CPU cores. Virtual thread improvements such as AMD SMT or Intel's Hyper-Threading have a positive impact on the benchmark result.
Intel Core i9-13900HK Intel Core i9-13900HK
14C 20T @ 5.00 GHz
13392
Intel Core i7-13800HE Intel Core i7-13800HE
14C 20T @ 4.00 GHz
13390
Intel Core i7-13800HRE Intel Core i7-13800HRE
14C 20T @ 4.00 GHz
13390
Intel Core i7-13700H Intel Core i7-13700H
14C 20T @ 4.40 GHz
13360
Intel Core i7-13705H Intel Core i7-13705H
14C 20T @ 4.40 GHz
13360
AMD EPYC 7402P AMD EPYC 7402P
24C 48T @ 3.20 GHz
13349
AMD EPYC 7502P AMD EPYC 7502P
32C 64T @ 3.00 GHz
13349

iGPU - FP32 Performance (Single-precision GFLOPS)

The theoretical computing performance of the internal graphics unit of the processor with simple accuracy (32 bit) in GFLOPS. GFLOPS indicates how many billion floating point operations the iGPU can perform per second.
HiSilicon Kirin 9000 HiSilicon Kirin 9000
ARM Mali-G78 MP24 @ 0.76 GHz
2332
Apple M1 (7-GPU) Apple M1 (7-GPU)
Apple M1 (7 Core) @ 1.30 GHz
2290
Qualcomm Snapdragon 8 Gen 3 Qualcomm Snapdragon 8 Gen 3
Qualcomm Adreno 750 @ 0.90 GHz
2287
Intel Core i7-13700H Intel Core i7-13700H
Intel Iris Xe Graphics 96 (Alder Lake) @ 1.50 GHz
2230
Intel Core i7-1360P Intel Core i7-1360P
Intel Iris Xe Graphics 96 (Alder Lake) @ 1.50 GHz
2230
Intel Core i7-1370P Intel Core i7-1370P
Intel Iris Xe Graphics 96 (Alder Lake) @ 1.50 GHz
2230
Intel Core i7-13705H Intel Core i7-13705H
Intel Iris Xe Graphics 96 (Alder Lake) @ 1.50 GHz
2230

Estimated results for PassMark CPU Mark

Some of the CPUs listed below have been benchmarked by CPU-monkey. However the majority of CPUs have not been tested and the results have been estimated by a CPU-monkey’s secret proprietary formula. As such they do not accurately reflect the actual Passmark CPU mark values and are not endorsed by PassMark Software Pty Ltd.
AMD Ryzen 5 7600X AMD Ryzen 5 7600X
6C 12T @ 5.30 GHz
28953
Intel Xeon Gold 6210U Intel Xeon Gold 6210U
20C 40T @ 2.50 GHz
28921
Intel Xeon W-3245M Intel Xeon W-3245M
16C 32T @ 4.00 GHz
28894
Intel Core i7-13700H Intel Core i7-13700H
14C 20T @ 4.40 GHz
28845
Intel Core i7-13705H Intel Core i7-13705H
14C 20T @ 4.40 GHz
28845
Intel Xeon W-2191B Intel Xeon W-2191B
18C 36T @ 3.40 GHz
28788
Intel Core i9-12900HK Intel Core i9-12900HK
14C 20T @ 3.80 GHz
28632

Benchmarks


Description of the processor

The Intel Core i7-13700H is a 14 core processor that has a hybrid core structure. The cores of the Intel Core i7-13700H consist of 6 larger P-cores (Raptor Cove) and 8 smaller E-cores (Gracemont). The P-cores support Intels Hyperthreading technology, which enables the Intel Core i7-13700H to process up to 20 threads at the same time with its total of 14 CPU cores.

The clock frequency of the P cores is 2.4 GHz (5.0 GHz in Turbo mode), the smaller E cores are more efficient and therefore clock significantly lower at 1.8 GHz (3.7 GHz in Turbo mode). .

The internal graphics, known as iGPU for short, are the Intel Iris Xe Graphics with 96 execution units, which is currently the largest iGPU of this generation. The iGPU has 768 shaders and has an FP32 computing power of 2.2 TFLOPS. The new and free video codec AV1 is decoded in hardware by the iGPU.

The Intel Core i7-13700H can use up to 64 GB of RAM. The desktop platform also supports both DDR4 and the newer and faster DDR5 memory. A maximum of two memory channels (dual-channel) are supported; DDR5-5200 with a memory bandwidth of 83.2 GB/s is supported as standard. Soldered LPDDR5-6400 memory with a memory bandwidth of 102.4 GB/s is also supported.

External devices can be connected with 28 PCIe lines, i.e. a dedicated graphics card with 16 lines can be used simultaneously at maximum speed, for example a fast M.2 SSD with 4 PCIe lines.

The TDP of the Intel Core i7-13700H is 45 watts, the power limit 2. (PL2) is 115 watts, although many notebooks cannot maintain this high thermal value for very long due to the cooling performance. The Intel Core i7-13700H has 24 MB Level 3 cache and is manufactured in 10 nm.
