Intel Pentium Silver J5040 Benchmark, Test and specs

Last updated: 2023-08-25

The Intel Pentium Silver J5040 is a 4 core processor. It can handle 4 threads simultaneously and was introduced in Q4/2019. The Intel Pentium Silver J5040 is based on the 9. generation of the Intel Pentium series and requires a mainboard with the socket BGA 1090. The Intel Pentium Silver J5040 scores 542 points with one CPU core in the Geekbench 5 benchmark. When using all CPU cores, the result is 1,773 points.

CPU lineage
Here you can see which group the Intel Pentium Silver J5040 belongs to and which processor is the predecessor of the Intel Pentium Silver J5040.
Name:	Intel Pentium Silver J5040
Family:	Intel Pentium
CPU group:	Intel Pentium J5000/N5000
Architecture:	Gemini Lake
Segment:	Mobile
Generation:	9
Predecessor:	--
Successor:	--

CPU Cores and Base Frequency

The 4 CPU cores of the Intel Pentium Silver J5040 clock with 2.00 GHz (3.20 GHz). The number of CPU cores and the clock frequency of the processor are largely responsible for the overall performance.

CPU Cores / Threads:	4 / 4
Core architecture:	normal
Cores:	4x

Hyperthreading / SMT:	No
Overclocking:	No
Frequency:	2.00 GHz
Turbo Frequency (1 Core):	3.20 GHz
Turbo Frequency (4 Cores):	2.40 GHz

Artificial Intelligence and Machine Learning

Processors with the support of artificial intelligence (AI) and machine learning (ML) can process many calculations, especially audio, image and video processing, much faster than classic processors. Algorithms for ML improve their performance the more data they have collected via software. ML tasks can be processed up to 10,000 times faster than with a classic processor.

AI hardware:	--
AI specifications:	--

Internal Graphics

With the Intel UHD Graphics 605, the Intel Pentium Silver J5040 has an build in graphic solution. It has 18 SM processors, which have a total of 144 texture shaders. The iGPU not only enables games, but also significantly accelerates video playback.

GPU name:	Intel UHD Graphics 605
GPU frequency:	0.25 GHz
GPU (Turbo):	0.80 GHz
Compute units:	18
Shader:	144
Max. GPU Memory:	8 GB

Max. displays:	3
Generation:	9.5
Direct X:	12
Technology:	14 nm
Release date:	Q4/2017

Hardware codec support

Processors that have an integrated graphics can play videos faster and more efficiently. This can have a positive effect on the battery life of notebooks, for example.

h265 / HEVC (8 bit):	Decode / Encode
h265 / HEVC (10 bit):	Decode / Encode
h264:	Decode / Encode
VP8:	Decode / Encode
VP9:	Decode / Encode

AV1:	No
AVC:	Decode / Encode
VC-1:	Decode
JPEG:	Decode / Encode

Memory type:	Memory bandwidth:
Memory & PCIe The Intel Pentium Silver J5040 supports up to 8 GB memory in up to 2 (Dual Channel) memory channels. This results in a maximum memory bandwidth of 38.4 GB/s.

LPDDR4-2400 DDR4-2400	38.4 GB/s 38.4 GB/s
Max. Memory:	8 GB
Memory channels:	2 (Dual Channel)
ECC:	No
PCIe:	2.0 x 6
PCIe Bandwidth:	3.0 GB/s

Thermal Management With the TDP, the processor manufacturer specifies the cooling solution required for the processor. The Intel Pentium Silver J5040 has a TDP of 10 W.

TDP (PL1 / PBP):	10 W
TDP (PL2):	--
TDP up:	--
TDP down:	--
Tjunction max.:	105 °C

Technical details

The Intel Pentium Silver J5040 has a 4.00 MB large cache. The processor is manufactured in %%Manufacturing%%. Modern production increases the efficiency of the processor.

Technology:	14 nm
Chip design:	Monolithic
Socket:	BGA 1090
L2-Cache:	--
L3-Cache:	4.00 MB
AES-NI:	Yes
Operating systems:	Windows 10, Windows 11, Linux

Virtualization:	VT-x, VT-x EPT, VT-d
Instruction set (ISA):	x86-64 (64 bit)
ISA extensions:	SSE4.1, SSE4.2
Release date:	Q4/2019
Release price:	--
Part Number:	--
Documents:	Technical data sheet

Intel Pentium Silver J5040
4C 4T @ 2.00 GHz (3.20 GHz)

buy now on Amazon and save!

Benchmark results

The benchmark results for the Intel Pentium Silver J5040 have been carefully checked by us. We only publish benchmark results that have been created by us or that have been submitted by a visitor and then checked by a team member. All results are based on and fullfill our benchmark guidelines.

Screenshots:

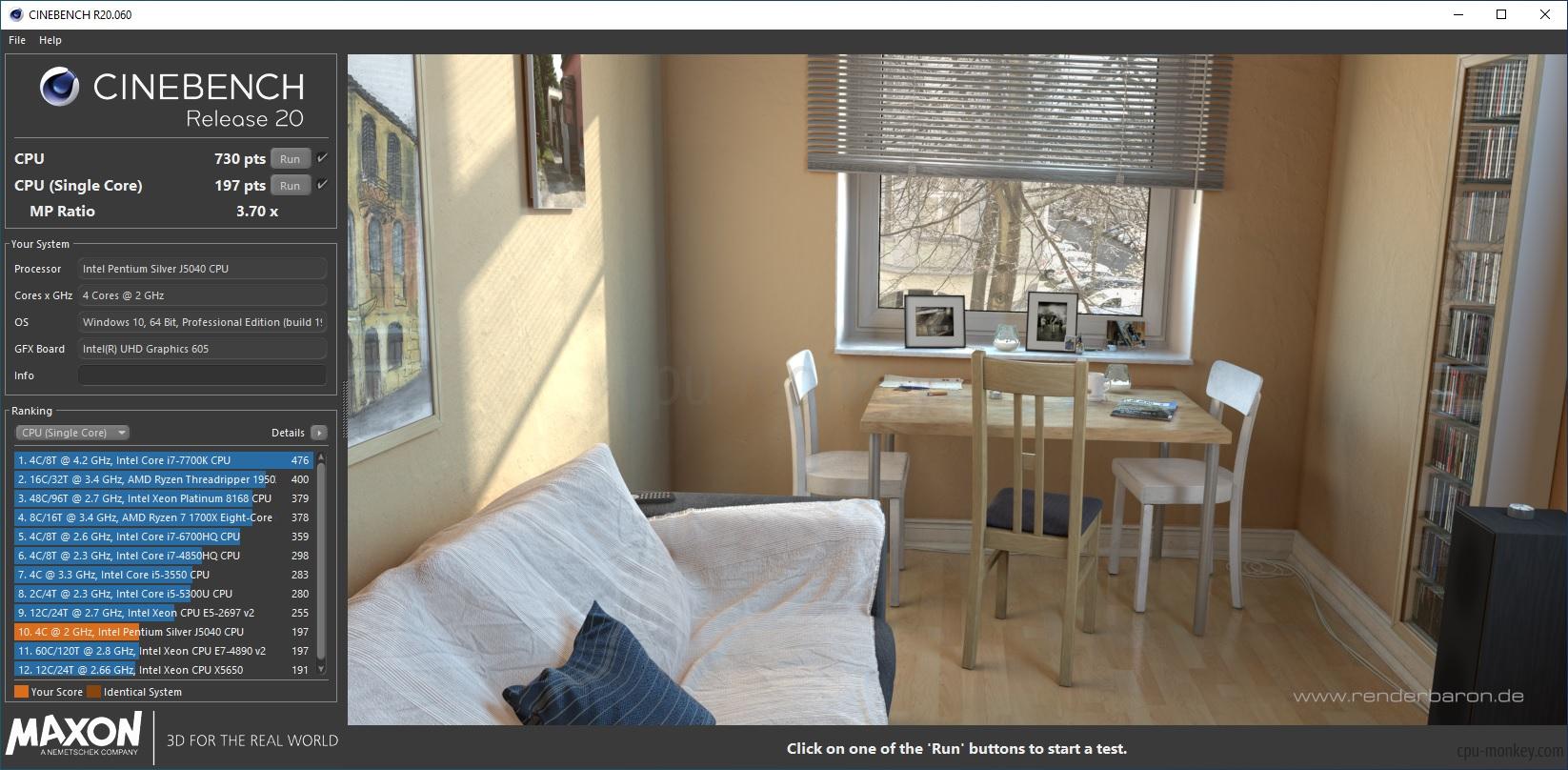

Cinebench R20 on ASRock J5040-ITX (8GB DDR4-2400), Windows 10

Cinebench R23 (Single-Core)

Cinebench R23 is the successor of Cinebench R20 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.


	Intel Pentium G2020 2C 2T @ 2.90 GHz	558
	Intel Core i3-8130U 2C 4T @ 3.40 GHz	556
	Intel Pentium Gold 5405U 2C 4T @ 2.30 GHz	535
	Intel Pentium Silver J5040 4C 4T @ 3.20 GHz	517
	AMD Athlon II X4 860K 4C 4T @ 4.00 GHz	517
	Intel Core 2 Quad Q9700 4C 4T @ 3.20 GHz	492
	AMD Phenom II X4 955 4C 4T @ 3.20 GHz	488

Cinebench R23 (Multi-Core)

Cinebench R23 is the successor of Cinebench R20 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.


	Intel Celeron G5905 2C 2T @ 3.50 GHz	1646
	Intel Celeron G5920 2C 2T @ 3.50 GHz	1646
	Intel Core 2 Quad Q9550 4C 4T @ 2.83 GHz	1642
	Intel Pentium Silver J5040 4C 4T @ 2.40 GHz	1640
	Intel Core 2 Quad Q9500 4C 4T @ 2.83 GHz	1616
	Intel Celeron N5100 4C 4T @ 2.20 GHz	1598
	Intel Core 2 Quad Q9505 4C 4T @ 2.83 GHz	1587

Geekbench 5, 64bit (Single-Core)

Geekbench 5 is a cross plattform benchmark that heavily uses the systems memory. A fast memory will push the result a lot. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.


	AMD 3015Ce 2C 4T @ 2.30 GHz	544
	MediaTek Dimensity 700 8C 8T @ 2.20 GHz	544
	MediaTek Helio G99 8C 8T @ 2.20 GHz	543
	Intel Pentium Silver J5040 4C 4T @ 3.20 GHz	542
	MediaTek Dimensity 6020 8C 8T @ 2.20 GHz	541
	Qualcomm Snapdragon 480 Plus 5G 8C 8T @ 2.20 GHz	541
	Intel Celeron G1820 2C 2T @ 2.70 GHz	541

Geekbench 5, 64bit (Multi-Core)

Geekbench 5 is a cross plattform benchmark that heavily uses the systems memory. A fast memory will push the result a lot. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.


	Qualcomm Snapdragon 765G 8C 8T @ 2.40 GHz	1788
	MediaTek Dimensity 800U 8C 8T @ 2.40 GHz	1783
	Intel Core i3-4130 2C 4T @ 3.40 GHz	1782
	Intel Pentium Silver J5040 4C 4T @ 2.40 GHz	1773
	Intel Core i3-8130U 2C 4T @ 2.80 GHz	1772
	Intel Core i3-10100Y 2C 4T @ 3.90 GHz	1768
	Intel Pentium Gold G5420T 2C 4T @ 3.20 GHz	1765

Geekbench 6 (Single-Core)

Geekbench 6 is a benchmark for modern computers, notebooks and smartphones. What is new is an optimized utilization of newer CPU architectures, e.g. based on the big.LITTLE concept and combining CPU cores of different sizes. The single-core benchmark only evaluates the performance of the fastest CPU core, the number of CPU cores in a processor is irrelevant here.


	Intel Celeron G1620 2C 2T @ 2.70 GHz	441
	Intel Core i3-3120M 2C 4T @ 2.50 GHz	439
	Intel Core i3-4010Y 2C 4T @ 1.30 GHz	439
	Intel Pentium Silver J5040 4C 4T @ 3.20 GHz	435
	Intel Core i5-3317U 2C 4T @ 2.60 GHz	431
	Intel Core i3-530 2C 4T @ 2.93 GHz	430
	Qualcomm Snapdragon 710 8C 8T @ 2.20 GHz	428

Geekbench 6 (Multi-Core)

Geekbench 6 is a benchmark for modern computers, notebooks and smartphones. What is new is an optimized utilization of newer CPU architectures, e.g. based on the big.LITTLE concept and combining CPU cores of different sizes. The multi-core benchmark evaluates the performance of all of the processor's CPU cores. Virtual thread improvements such as AMD SMT or Intel's Hyper-Threading have a positive impact on the benchmark result.


	Apple A9X 2C 2T @ 2.26 GHz	1251
	Intel Core i5-3360M 2C 4T @ 2.80 GHz	1249
	Intel Pentium J6426 4C 4T @ 2.00 GHz	1245
	Intel Pentium Silver J5040 4C 4T @ 2.40 GHz	1244
	Intel Celeron G5900 2C 2T @ 3.40 GHz	1240
	Intel Core i3-3240 2C 4T @ 3.40 GHz	1240
	Intel Core i7-3687U 2C 4T @ 3.30 GHz	1239

Cinebench R20 (Single-Core)

Cinebench R20 is the successor of Cinebench R15 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.


	Intel Celeron N5100 4C 4T @ 2.80 GHz	201
	Intel Pentium Gold 4417U 2C 4T @ 2.30 GHz	201
	Qualcomm Snapdragon Microsoft SQ3 8C 8T @ 3.00 GHz	198
	Intel Pentium Silver J5040 4C 4T @ 3.20 GHz	197
	Intel Celeron N4500 2C 2T @ 2.80 GHz	197
	Intel Pentium Silver J5005 4C 4T @ 2.80 GHz	197
	AMD A9-9425 2C 2T @ 3.70 GHz	195

Cinebench R20 (Multi-Core)

Cinebench R20 is the successor of Cinebench R15 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.


	Intel Core i5-6300U 2C 4T @ 2.60 GHz	739
	Intel Core i7-7500U 2C 4T @ 3.50 GHz	739
	Intel Core i5-6200U 2C 4T @ 2.70 GHz	735
	Intel Pentium Silver J5040 4C 4T @ 2.40 GHz	730
	Intel Xeon E5450 4C 4T @ 3.00 GHz	721
	AMD A10-9700 4C 4T @ 3.50 GHz	716
	Intel Core i5-5257U 2C 4T @ 3.10 GHz	706

iGPU - FP32 Performance (Single-precision GFLOPS)

The theoretical computing performance of the internal graphics unit of the processor with simple accuracy (32 bit) in GFLOPS. GFLOPS indicates how many billion floating point operations the iGPU can perform per second.


	Intel Core i5-3610ME Intel HD Graphics 4000 @ 0.95 GHz	243
	MediaTek Dimensity 810 ARM Mali-G57 MP2 @ 0.95 GHz	243
	MediaTek Helio G90T ARM Mali-G76 MP4 @ 0.80 GHz	231
	Intel Pentium Silver J5040 Intel UHD Graphics 605 @ 0.80 GHz	230
	Apple A8X Apple A8X @ 0.45 GHz	230
	Intel Core i7-2715QE Intel HD Graphics 3000 @ 1.20 GHz	230
	Intel Core i7-2710QE Intel HD Graphics 3000 @ 1.20 GHz	230

Estimated results for PassMark CPU Mark

Some of the CPUs listed below have been benchmarked by CPU-monkey. However the majority of CPUs have not been tested and the results have been estimated by a CPU-monkey’s secret proprietary formula. As such they do not accurately reflect the actual Passmark CPU mark values and are not endorsed by PassMark Software Pty Ltd.


	AMD Phenom II X4 920 4C 4T @ 2.80 GHz	3489
	AMD Phenom II X4 925 4C 4T @ 2.80 GHz	3489
	Intel Core i7-6600U 2C 4T @ 3.00 GHz	3465
	Intel Pentium Silver J5040 4C 4T @ 2.40 GHz	3460
	Intel Core i5-L16G7 5C 5T @ 1.80 GHz	3451
	AMD A10-4657M 4C 4T @ 3.20 GHz	3449
	Intel Core i3-7100H 2C 4T @ 3.00 GHz	3430

Cinebench R15 (Single-Core)

Cinebench R15 is the successor of Cinebench 11.5 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.


	AMD FX-8300 8C 8T @ 4.20 GHz	96
	AMD FX-8350 8C 8T @ 4.20 GHz	96
	Intel Xeon E5-2628L v3 10C 20T @ 2.50 GHz	96
	Intel Pentium Silver J5040 4C 4T @ 3.20 GHz	95
	Intel Celeron G1840T 2C 2T @ 2.50 GHz	95
	Intel Celeron G1620 2C 2T @ 2.70 GHz	95
	Intel Pentium G2010 2C 2T @ 2.80 GHz	95

Cinebench R15 (Multi-Core)

Cinebench R15 is the successor of Cinebench 11.5 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.


	AMD Ryzen 3 2200U 2C 4T @ 2.50 GHz	318
	Intel Core i5-4300M 2C 4T @ 3.30 GHz	318
	Intel Core i5-6360U 2C 4T @ 3.00 GHz	318
	Intel Pentium Silver J5040 4C 4T @ 2.40 GHz	317
	Intel Atom C2750 8C 8T @ 2.60 GHz	317
	Intel Pentium G4560T 2C 4T @ 2.90 GHz	316
	AMD Athlon X4 845 4C 4T @ 3.80 GHz	316

Benchmarks

Cinebench R23 (SC)
561 entries

Cinebench R23 (MC)
537 entries

Geekbench 5 (SC)
2,428 entries

Geekbench 5 (MC)
2,402 entries

Geekbench 6 (SC)
1,688 entries

Geekbench 6 (MC)
1,638 entries

Cinebench R20 (SC)
648 entries

Cinebench R20 (MC)
596 entries

FP32 SP (iGPU)
1,943 entries

PassMark CPU-Mark
2,334 entries

Cinebench R15 (SC)
1,104 entries

Cinebench R15 (MC)
1,099 entries

Description of the processor

The AMD Ryzen 5 3400G is a quad-core processor from AMD. It clocks its 4 cores with 3.6 GHz, but can increase the clock rate to 3.7 GHz (load on all cores) or even 3.9 GHz (single core load).

It supports Hyper-Threading technology and thus comes to 8 logical processors (4+4). Both the CPU and the iGPU part of the processor can be overclocked. The iGPU in the AMD Ryzen 5 3400G is an AMD Radeon Vega 11 with eleven execution units. The iGPU supports up to 3 screens. Modern video codecs via hardware are no problem with the graphics card, as are simple and also newer games up to Full HD resolution.

The processor supports fast DDR4-2933 working memory, but can also address OC memory with even higher clock rates. Since the AMD Radeon Vega 11 graphics card benefits greatly from fast working memory, we recommend at least the officially supported DDR4-2933 memory, even DDR4-3600 or similar is better. To ensure that the memory bandwidth is sufficient even in newer games, we also recommend running the RAM in dual-channel mode, i.e. using two memory modules instead of just one.

PCIe 3.0 is supported with 16 lines, which is typical for the Zen+ processors for the socket AM4. Modern virtualization features are also available, as well as the possibility to accelerate AES-Ni encryption operations via hardware. This makes it possible to encrypt the operating system drive, for example, without performance losses.

The AMD Ryzen 5 3400G is based on the Zen+ architecture (Picasso), which is the 2nd generation of AMDs Zen CPU design. It is manufactured in 12 nm and already has a fairly high TDP of 65 watts. The AMD Ryzen 5 3400G will be released in Q2/2019 at an introductory price of approximately 165 Euros.
