Intel Core i3-8130U Benchmark, Test and specs

Last updated:
The Intel Core i3-8130U has 2 cores with 4 threads and is based on the 8. gen of the Intel Core i3 series. The processor uses a mainboard with the BGA 1356 socket and was released in Q1/2018.
Intel Core i3-8130U

CPU lineageCPU lineage

The segment in which we have classified the Intel Core i3-8130U. Here you can see if it is a desktop processor or a mobile processor or which processor may be the successor of the Intel Core i3-8130U.

Name: Intel Core i3-8130U
Family: Intel Core i3
CPU group: Intel Core i 8000U
Segment: Mobile
Generation: 8
Predecessor: --
Successor: --

CPU Cores and Base FrequencyCPU Cores and Base Frequency

In addition to the number of CPU cores and threads, you can see here whether the Intel Core i3-8130U can be overclocked. You will also find the clock frequencies of the processor (single-core and multi-core) here. The number of CPU cores greatly affects the speed of the processor.

CPU Cores / Threads: 2 / 4
Core architecture: normal
Cores: 2x
Hyperthreading / SMT: Yes
Overclocking: No
Frequency: 2.20 GHz
Turbo Frequency (1 Core): 3.40 GHz
Turbo Frequency (2 Cores): 2.80 GHz

Internal GraphicsInternal Graphics

The Intel Core i3-8130U has integrated graphics, called iGPU for short. The iGPU uses the system's main memory as graphics memory and sits on the processor's die. A processor with integrated graphics is also called APU (Accelerated Processing Unit).

GPU name: Intel UHD Graphics 620
GPU frequency: 0.30 GHz
GPU (Turbo): 1.00 GHz
Execution units: 24
Shader: 192
Max. GPU Memory: 64 GB
Max. displays: 3
Generation: 9.5
Direct X: 12
Technology: 14 nm
Release date: Q3/2016

Hardware codec supportHardware codec support

A photo or video codec that is accelerated in hardware can greatly accelerate the working speed of a processor and extend the battery life of notebooks or smartphones when playing videos.

h265 / HEVC (8 bit): Decode / Encode
h265 / HEVC (10 bit): Decode / Encode
h264: Decode / Encode
VP8: Decode / Encode
VP9: Decode / Encode
AV1: No
AVC: Decode / Encode
VC-1: Decode
JPEG: Decode / Encode

Memory & PCIeMemory & PCIe

The memory type as well as the amount of memory can greatly affect the speed of the processor. The memory bandwidth depends on several factors and is given in gigabytes per second.

Memory type: DDR4-2400 SO-DIMM
Max. Memory: 32 GB
Memory channels: 2
Bandwidth: --
ECC: Yes
PCIe: 3.0 x 12
AES-NI: Yes

Thermal ManagementThermal Management

The Thermal Design Power (TDP for short) specifies the necessary cooling solution to cool the processor sufficiently. The TDP usually only gives a rough idea of the real consumption of a CPU.

TDP (PL1): 15 W
TDP (PL2): --
TDP up: --
TDP down: --
Tjunction max.: --

Technical detailsTechnical details

Here you will find information on the size of the level 2 and level 3 cache of the Intel Core i3-8130U as well as a list of the processors ISA extensions. We have documented the architecture and the manufacturing technology for you as well as the release date.

Technology: 14 nm
Chip design: Monolithic
Socket: BGA 1356
L2-Cache: --
L3-Cache: 4.00 MB
Architecture: Kaby Lake U Refresh
Operating systems: Windows 10, Windows 11, Linux
Virtualization: VT-x, VT-x EPT, VT-d
Instruction set (ISA): x86-64 (64 bit)
ISA extensions: SSE4.1, SSE4.2, AVX2
Release date: Q1/2018
Part Number: --
Documents: --

Benchmark results

Verified Benchmark results
The benchmark results for the Intel Core i3-8130U have been carefully checked by us. We only publish benchmark results that have been created by us or that have been submitted by a visitor and then checked by a team member. All results are based on and fullfill our benchmark guidelines.

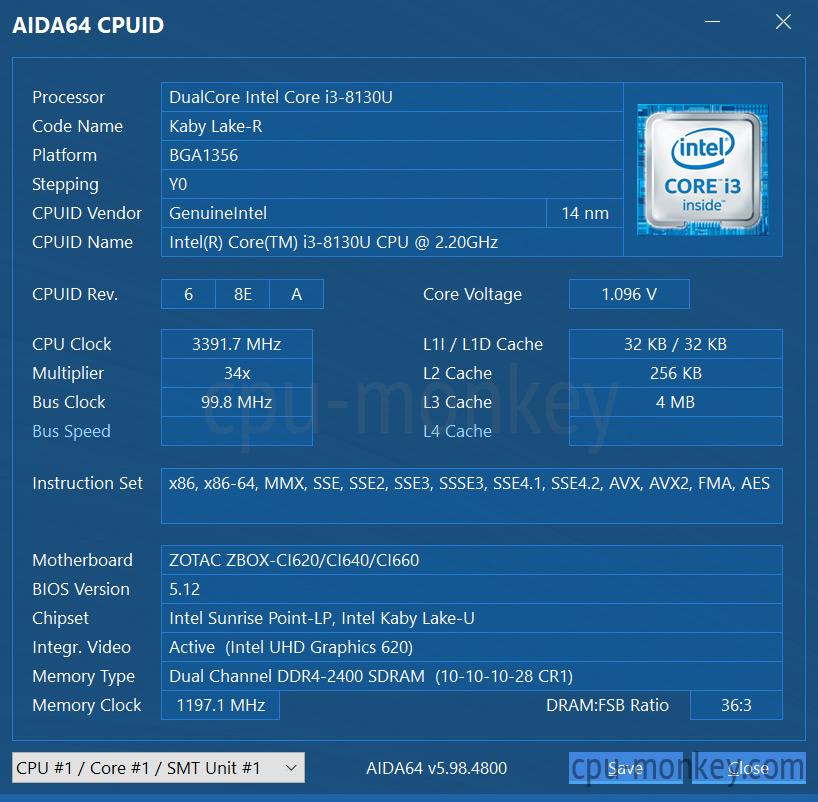

Screenshots:

Cinebench R23 (Single-Core)

Cinebench R23 is the successor of Cinebench R20 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.

AMD A10-9700 AMD A10-9700
4C 4T @ 3.80 GHz
596
Intel Core i5-2450M Intel Core i5-2450M
2C 4T @ 3.10 GHz
582
AMD FX-8350 AMD FX-8350
8C 8T @ 4.20 GHz
579
Intel Core i3-8130U Intel Core i3-8130U
2C 4T @ 3.40 GHz
556
AMD Athlon II X4 860K AMD Athlon II X4 860K
4C 4T @ 4.00 GHz
517
Intel Core 2 Quad Q9700 Intel Core 2 Quad Q9700
4C 4T @ 3.20 GHz
492
AMD Phenom II X4 955 AMD Phenom II X4 955
4C 4T @ 3.20 GHz
488
Show all Cinebench R23 (Single-Core) results



Cinebench R23 (Multi-Core)

Cinebench R23 is the successor of Cinebench R20 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.

AMD Athlon II X4 640 AMD Athlon II X4 640
4C 4T @ 3.00 GHz
1471
AMD Athlon II X4 635 AMD Athlon II X4 635
4C 4T @ 2.90 GHz
1422
Intel Core i7-7Y75 Intel Core i7-7Y75
2C 4T @ 2.80 GHz
1403
Intel Core i3-8130U Intel Core i3-8130U
2C 4T @ 2.80 GHz
1391
AMD Athlon II X4 630 AMD Athlon II X4 630
4C 4T @ 2.80 GHz
1373
Intel Core i5-4210M Intel Core i5-4210M
2C 4T @ 2.60 GHz
1369
Intel Core i5-2450M Intel Core i5-2450M
2C 4T @ 2.50 GHz
1352
Show all Cinebench R23 (Multi-Core) results



Geekbench 5, 64bit (Single-Core)

Geekbench 5 is a cross plattform benchmark that heavily uses the systems memory. A fast memory will push the result a lot. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.

Intel Core i7-3970X Intel Core i7-3970X
6C 12T @ 4.00 GHz
801
AMD Ryzen 3 1200 AMD Ryzen 3 1200
4C 4T @ 3.40 GHz
800
AMD Ryzen 3 PRO 1200 AMD Ryzen 3 PRO 1200
4C 4T @ 3.40 GHz
800
Intel Core i3-8130U Intel Core i3-8130U
2C 4T @ 3.40 GHz
799
Intel Core i7-7500U Intel Core i7-7500U
2C 4T @ 3.50 GHz
799
Intel Core i7-6500U Intel Core i7-6500U
2C 4T @ 3.10 GHz
797
MediaTek Dimensity 1000 MediaTek Dimensity 1000
8C 8T @ 2.60 GHz
796
Show all Geekbench 5, 64bit (Single-Core) results



Geekbench 5, 64bit (Multi-Core)

Geekbench 5 is a cross plattform benchmark that heavily uses the systems memory. A fast memory will push the result a lot. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.

Intel Core i5-750 Intel Core i5-750
4C 4T @ 2.66 GHz
1692
MediaTek Dimensity 700 MediaTek Dimensity 700
8C 8T @ 2.00 GHz
1692
Intel Core i7-4558U Intel Core i7-4558U
2C 4T @ 3.10 GHz
1686
Intel Core i3-8130U Intel Core i3-8130U
2C 4T @ 2.80 GHz
1679
Qualcomm Snapdragon 720G Qualcomm Snapdragon 720G
8C 8T @ 2.30 GHz
1676
Intel Core i3-1000NG4 Intel Core i3-1000NG4
4C 8T @ 3.20 GHz
1673
Intel Celeron G5905 Intel Celeron G5905
2C 2T @ 3.50 GHz
1671
Show all Geekbench 5, 64bit (Multi-Core) results



CPU-Z Benchmark 17 (Multi-Core)

The CPU-Z benchmark measures a processor's performance by measuring the time it takes the system to complete all benchmark calculations. The faster the benchmark is completed, the higher the score.

Intel Core 2 Quad Q9500 Intel Core 2 Quad Q9500
4C 4T @ 2.83 GHz
953
AMD Athlon 200GE AMD Athlon 200GE
2C 4T @ 3.20 GHz
952
Intel Core i3-4150 Intel Core i3-4150
2C 4T @ 3.50 GHz
947
Intel Core i3-8130U Intel Core i3-8130U
2C 4T @ 2.20 GHz
937
Intel Core i5-750 Intel Core i5-750
4C 4T @ 2.66 GHz
923
AMD Phenom II X6 1100T AMD Phenom II X6 1100T
6C 6T @ 3.30 GHz
923
Intel Core i3-4130 Intel Core i3-4130
2C 4T @ 3.40 GHz
921
Show all CPU-Z Benchmark 17 (Multi-Core) results



iGPU - FP32 Performance (Single-precision GFLOPS)

The theoretical computing performance of the internal graphics unit of the processor with simple accuracy (32 bit) in GFLOPS. GFLOPS indicates how many billion floating point operations the iGPU can perform per second.

AMD A8-5500 AMD A8-5500
AMD Radeon HD 7560D @ 0.76 GHz
389
AMD A8-5500B AMD A8-5500B
AMD Radeon HD 7560D @ 0.76 GHz
389
AMD A8-5600K AMD A8-5600K
AMD Radeon HD 7560D @ 0.76 GHz
389
Intel Core i3-8130U Intel Core i3-8130U
Intel UHD Graphics 620 @ 1.00 GHz
384
Intel Core i3-10100Y Intel Core i3-10100Y
Intel UHD Graphics 615 @ 1.00 GHz
384
AMD 3020e AMD 3020e
AMD Radeon Vega 3 Graphics @ 1.00 GHz
384
AMD Athlon Silver 3050e AMD Athlon Silver 3050e
AMD Radeon Vega 3 Graphics @ 1.00 GHz
384
Show all iGPU - FP32 Performance (Single-precision GFLOPS) results



Estimated results for PassMark CPU Mark

Some of the CPUs listed below have been benchmarked by CPU-monkey. However the majority of CPUs have not been tested and the results have been estimated by a CPU-monkey’s secret proprietary formula. As such they do not accurately reflect the actual Passmark CPU mark values and are not endorsed by PassMark Software Pty Ltd.

AMD Phenom II X6 1065T AMD Phenom II X6 1065T
6C 6T @ 3.40 GHz
5392
Intel Core i5-7360U Intel Core i5-7360U
2C 4T @ 3.60 GHz
5390
Intel Pentium G4600 Intel Pentium G4600
2C 4T @ 3.60 GHz
5378
Intel Core i3-8130U Intel Core i3-8130U
2C 4T @ 2.80 GHz
5372
Intel Core i5-4590 Intel Core i5-4590
4C 4T @ 3.50 GHz
5359
Intel Pentium Gold 7505 Intel Pentium Gold 7505
2C 4T @ 3.50 GHz
5349
Intel Core i5-7267U Intel Core i5-7267U
2C 4T @ 3.50 GHz
5340
Show all Estimated results for PassMark CPU Mark results



Cinebench R15 (Single-Core)

Cinebench R15 is the successor of Cinebench 11.5 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.

Intel Core i3-4340 Intel Core i3-4340
2C 4T @ 3.60 GHz
142
Intel Core i3-4350 Intel Core i3-4350
2C 4T @ 3.60 GHz
142
Intel Core i7-4800MQ Intel Core i7-4800MQ
4C 8T @ 3.70 GHz
142
Intel Core i3-8130U Intel Core i3-8130U
2C 4T @ 3.40 GHz
141
AMD Ryzen 5 PRO 3500U AMD Ryzen 5 PRO 3500U
4C 8T @ 3.70 GHz
141
AMD Ryzen 5 3550H AMD Ryzen 5 3550H
4C 8T @ 3.70 GHz
141
AMD Ryzen 5 3580U AMD Ryzen 5 3580U
4C 8T @ 3.70 GHz
141
Show all Cinebench R15 (Single-Core) results



Cinebench R15 (Multi-Core)

Cinebench R15 is the successor of Cinebench 11.5 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.

Intel Core i3-7100H Intel Core i3-7100H
2C 4T @ 3.00 GHz
328
Intel Core i5-5257U Intel Core i5-5257U
2C 4T @ 3.10 GHz
327
Intel Pentium G4600T Intel Pentium G4600T
2C 4T @ 3.00 GHz
327
Intel Core i3-8130U Intel Core i3-8130U
2C 4T @ 2.80 GHz
326
Intel Xeon E5450 Intel Xeon E5450
4C 4T @ 3.00 GHz
326
AMD A12-9800 AMD A12-9800
4C 4T @ 3.80 GHz
326
Intel Core i3-1000NG4 Intel Core i3-1000NG4
4C 8T @ 3.20 GHz
326
Show all Cinebench R15 (Multi-Core) results



Geekbench 3, 64bit (Single-Core)

Geekbench 3 is a cross plattform benchmark that heavily uses the systems memory. A fast memory will push the result a lot. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.

Intel Core i7-4770T Intel Core i7-4770T
4C 8T @ 3.70 GHz
3618
Intel Xeon E5-2637 v3 Intel Xeon E5-2637 v3
4C 8T @ 3.70 GHz
3618
Intel Core i7-5700HQ Intel Core i7-5700HQ
4C 8T @ 3.50 GHz
3616
Intel Core i3-8130U Intel Core i3-8130U
2C 4T @ 3.40 GHz
3600
Intel Core i7-6600U Intel Core i7-6600U
2C 4T @ 3.40 GHz
3600
Intel Core i5-4690K Intel Core i5-4690K
4C 4T @ 3.90 GHz
3597
Intel Core i5-4690S Intel Core i5-4690S
4C 4T @ 3.90 GHz
3597
Show all Geekbench 3, 64bit (Single-Core) results



Geekbench 3, 64bit (Multi-Core)

Geekbench 3 is a cross plattform benchmark that heavily uses the systems memory. A fast memory will push the result a lot. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.

Intel Core i7-5557U Intel Core i7-5557U
2C 4T @ 3.40 GHz
7113
Intel Xeon X3440 Intel Xeon X3440
4C 8T @ 2.53 GHz
7107
Intel Core i3-8145U Intel Core i3-8145U
2C 4T @ 2.80 GHz
7086
Intel Core i3-8130U Intel Core i3-8130U
2C 4T @ 2.80 GHz
7070
Intel Core i5-7200U Intel Core i5-7200U
2C 4T @ 3.10 GHz
7069
Intel Atom C2750 Intel Atom C2750
8C 8T @ 2.60 GHz
7067
Intel Core i7-4610M Intel Core i7-4610M
2C 4T @ 3.60 GHz
7060
Show all Geekbench 3, 64bit (Multi-Core) results



Cinebench R11.5, 64bit (Single-Core)

Cinebench 11.5 is based on the Cinema 4D Suite, a software that is popular to generate forms and other stuff in 3D. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.

Intel Core i5-3570 Intel Core i5-3570
4C 4T @ 3.80 GHz
1.61
Intel Core i5-3570K Intel Core i5-3570K
4C 4T @ 3.80 GHz
1.61
Intel Core i7-3970X Intel Core i7-3970X
6C 12T @ 4.00 GHz
1.61
Intel Core i3-8130U Intel Core i3-8130U
2C 4T @ 3.40 GHz
1.61
AMD Ryzen 5 PRO 2500U AMD Ryzen 5 PRO 2500U
4C 8T @ 3.60 GHz
1.6
AMD Ryzen 3 PRO 3300U AMD Ryzen 3 PRO 3300U
4C 4T @ 3.50 GHz
1.6
AMD Ryzen 3 3300U AMD Ryzen 3 3300U
4C 4T @ 3.50 GHz
1.6
Show all Cinebench R11.5, 64bit (Single-Core) results



Cinebench R11.5, 64bit (Multi-Core)

Cinebench 11.5 is based on the Cinema 4D Suite, a software that is popular to generate forms and other stuff in 3D. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.

AMD Phenom II X4 840T AMD Phenom II X4 840T
4C 4T @ 3.20 GHz
3.82
Intel Core i3-4330 Intel Core i3-4330
2C 4T @ 3.50 GHz
3.82
Intel Core i3-8145U Intel Core i3-8145U
2C 4T @ 2.80 GHz
3.81
Intel Core i3-8130U Intel Core i3-8130U
2C 4T @ 2.80 GHz
3.79
Intel Core i3-4150 Intel Core i3-4150
2C 4T @ 3.50 GHz
3.79
AMD Athlon II X4 750K AMD Athlon II X4 750K
4C 4T @ 4.00 GHz
3.79
Intel Atom C2750 Intel Atom C2750
8C 8T @ 2.60 GHz
3.77
Show all Cinebench R11.5, 64bit (Multi-Core) results



Leaderboards

In our leaderboards, we have clearly compiled the best processors for specific categories for you. The leaderboards are always up to date and are regularly updated by us. The best processors are selected according to popularity and speed in benchmarks as well as the price-performance ratio.


Popular comparisons

1. AMD Ryzen 3 3200U Intel Core i3-8130U AMD Ryzen 3 3200U vs Intel Core i3-8130U
2. AMD Ryzen 3 3250U Intel Core i3-8130U AMD Ryzen 3 3250U vs Intel Core i3-8130U
3. AMD Athlon 300U Intel Core i3-8130U AMD Athlon 300U vs Intel Core i3-8130U
4. Intel Pentium Silver N5000 Intel Core i3-8130U Intel Pentium Silver N5000 vs Intel Core i3-8130U
5. Intel Core i3-8130U Intel Core i5-8250U Intel Core i3-8130U vs Intel Core i5-8250U
6. Intel Core i3-8130U Intel Core i5-7200U Intel Core i3-8130U vs Intel Core i5-7200U
7. AMD Athlon Silver 3050U Intel Core i3-8130U AMD Athlon Silver 3050U vs Intel Core i3-8130U
8. Intel Core i3-8145U Intel Core i3-8130U Intel Core i3-8145U vs Intel Core i3-8130U
9. Intel Core i3-1005G1 Intel Core i3-8130U Intel Core i3-1005G1 vs Intel Core i3-8130U
10. Intel Pentium Gold 4415U Intel Core i3-8130U Intel Pentium Gold 4415U vs Intel Core i3-8130U
11. Intel Core i3-8130U AMD Ryzen 5 2500U Intel Core i3-8130U vs AMD Ryzen 5 2500U
12. Intel Core i3-8130U AMD Ryzen 3 2200U Intel Core i3-8130U vs AMD Ryzen 3 2200U
13. Intel Core i3-8130U Intel Core i3-10110U Intel Core i3-8130U vs Intel Core i3-10110U
14. Intel Core i3-7100U Intel Core i3-8130U Intel Core i3-7100U vs Intel Core i3-8130U
15. Qualcomm Snapdragon 7c Gen 2 Intel Core i3-8130U Qualcomm Snapdragon 7c Gen 2 vs Intel Core i3-8130U


back to index
