Intel Core i5-760 Benchmark, Test and specs
Last updated:
The Intel Core i5-760 has 4 cores with 4 threads and is based on the 1. gen of the Intel Core i5 series. The processor uses a mainboard with the LGA 1156 socket and was released in Q3/2010. The Intel Core i5-760 scores 571 points in the Geekbench 5 single-core benchmark. In the Geekbench 5 multi-core benchmark, the result is 1,810 points.
| Name: | Intel Core i5-760 |
|---|---|
| Family: | Intel Core i5 (336) |
| CPU group: | Intel Core i5 700 (3) |
| Architecture: | Lynnfield |
| Technology: | 45 nm |
| Segment: | Desktop |
| Generation: | 1 |
| Predecessor: | -- |
| Successor: | -- |
CPU Cores and Base Frequency
The Intel Core i5-760 has 4 CPU cores and can calculate 4 threads in parallel. The clock frequency of the Intel Core i5-760 is 2.80 GHz (3.33 GHz). The number of CPU cores greatly affects the speed of the processor and is an important performance indicator.
| CPU Cores / Threads: | 4 / 4 |
|---|---|
| Core architecture: | normal |
| Cores: | 4x |
| Hyperthreading / SMT: | No |
|---|---|
| Overclocking: | No |
| Frequency: | 2.80 GHz |
| Turbo Frequency (1 Core): | 3.33 GHz |
| Turbo Frequency (4 Cores): | -- |
Memory & PCIeThe processor can use up to 16 GB memory in 2 (Dual Channel) memory channels. The maximum memory bandwidth is 21.3 GB/s. The memory type as well as the amount of memory can greatly affect the speed of the system. |
|
| Memory type: | Memory bandwidth: |
|---|---|
| DDR3-1066 DDR3-1333 | 17.1 GB/s 21.3 GB/s |
| Max. Memory: | 16 GB |
| Memory channels: | 2 (Dual Channel) |
| ECC: | No |
| PCIe: | 2.0 x 16 |
| PCIe Bandwidth: | 8.0 GB/s |
Thermal ManagementThe thermal design power (TDP for short) of the processor is 95 W. The TDP specifies the necessary cooling solution that is required to cool the processor sufficiently. The TDP usually gives a rough idea of the actual power consumption of the CPU. |
|
|---|---|
| TDP (PL1 / PBP): | 95 W |
| TDP (PL2): | -- |
| TDP up: | -- |
| TDP down: | -- |
| Tjunction max.: | -- |
Technical details
The Intel Core i5-760 is made in 45 nm. The smaller the manufacturing process of a CPU, the more modern and energy-efficient it is. Overall, the processor has 9.00 MB cache. A large cache can greatly speed up the processor's speed in some cases such as games.
| Technology: | 45 nm |
|---|---|
| Chip design: | Monolithic |
| Socket: | LGA 1156 |
| L2-Cache: | 1.00 MB |
| L3-Cache: | 8.00 MB |
| AES-NI: | No |
| Operating systems: | Windows 10, Linux |
| Virtualization: | VT-x, VT-x EPT |
|---|---|
| Instruction set (ISA): | x86-64 (64 bit) |
| ISA extensions: | SSE4.1, SSE4.2 |
| Release date: | Q3/2010 |
| Release price: | 213 $ |
| Part Number: | -- |
| Documents: | Technical data sheet |
4C 4T @ 2.80 GHz (3.33 GHz)
buy now on Amazon and save!
Rate this processor
Benchmark results
The benchmark results for the Intel Core i5-760 have been carefully checked by us. We only publish benchmark results that have been created by us or that have been submitted by a visitor and then checked by a team member. All results are based on and fullfill our benchmark guidelines.
Screenshots:
Screenshots:

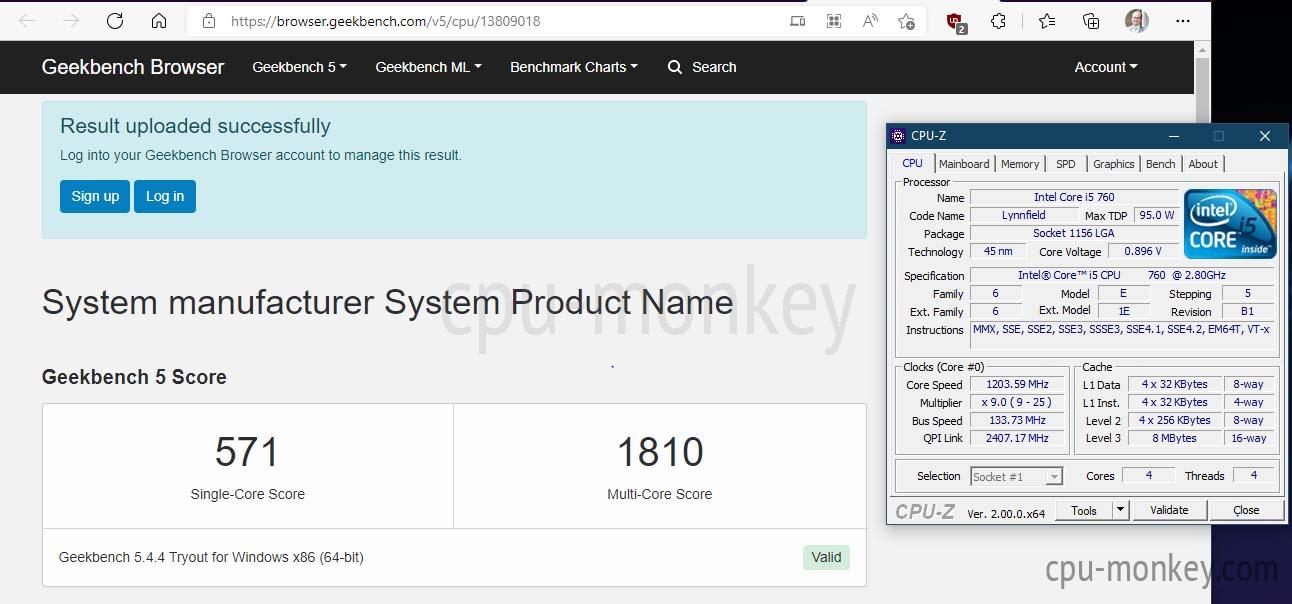

- Geekbench 5.4.4 (ASUS P7P55D PRO), Windows 10

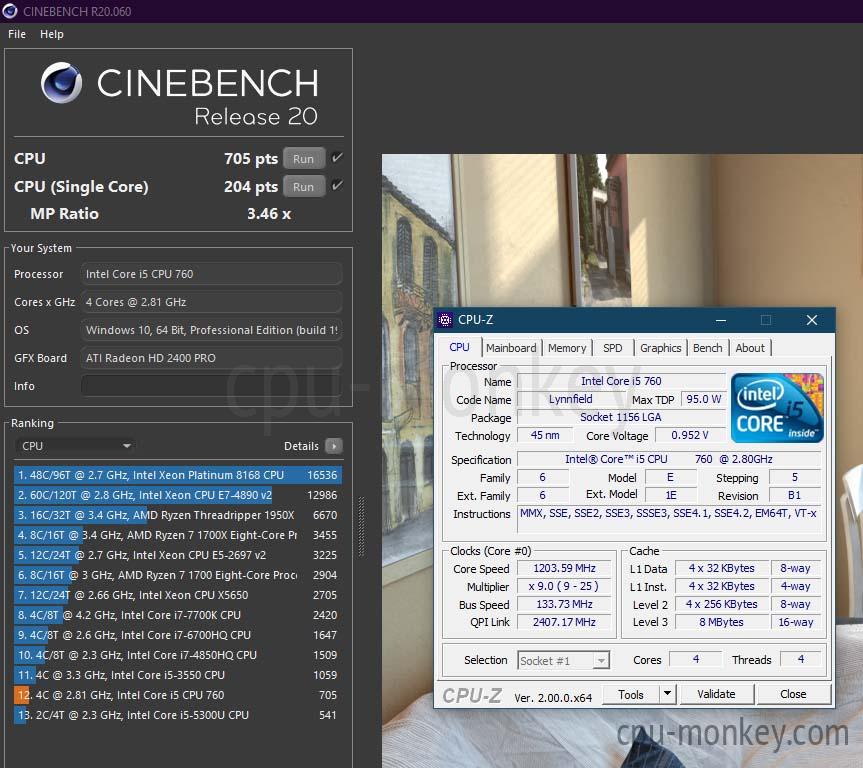

- Cinebench R20 (ASUS P7P55D PRO), Windows 10

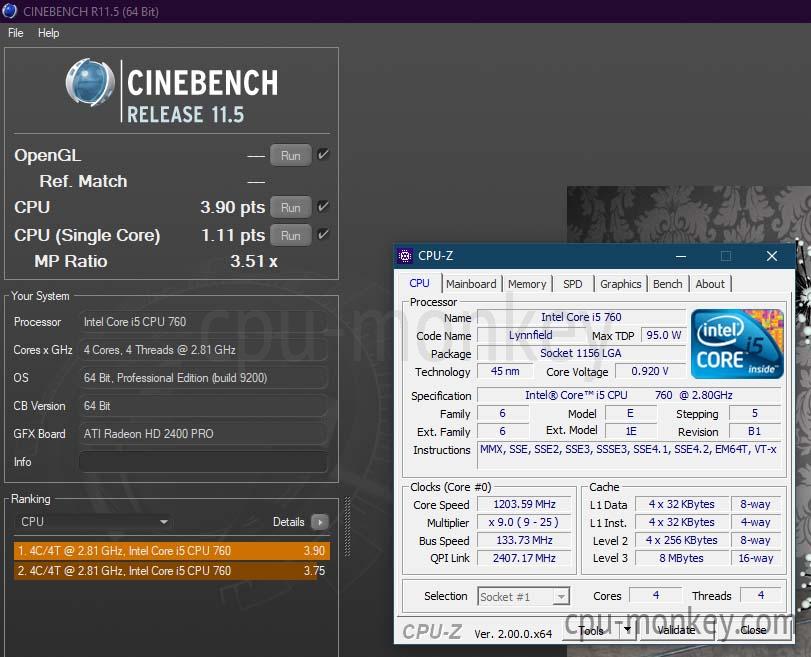

- Cinebench R11.5 (ASUS P7P55D PRO), Windows 10
- Cinebench R15 (ASUS P7P55D PRO), Windows 10
Geekbench 5, 64bit (Single-Core)
Geekbench 5 is a cross plattform benchmark that heavily uses the systems memory. A fast memory will push the result a lot. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.
|
AMD FX-4350
4C 4T @ 4.30 GHz |
||
|
Intel Core i7-870
4C 8T @ 3.60 GHz |
||
|
|
AMD FX-8350
8C 8T @ 4.20 GHz |
||
|
Intel Core i5-760
4C 4T @ 3.33 GHz |
||
|
|
Intel Core i7-950
4C 8T @ 3.33 GHz |
||
|
Intel Celeron G1830
2C 2T @ 2.80 GHz |
||
|
Intel Core i3-4330TE
2C 4T @ 2.40 GHz |
||
Geekbench 5, 64bit (Multi-Core)
Geekbench 5 is a cross plattform benchmark that heavily uses the systems memory. A fast memory will push the result a lot. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.
|
|
Intel Core i7-860S
4C 8T @ 2.53 GHz |
||
|
AMD A12-9800
4C 4T @ 3.80 GHz |
||
|
Intel Pentium Gold G6400T
2C 4T @ 3.40 GHz |
||
|
|
Intel Core i5-760
4C 4T @ 2.80 GHz |
||
|
|
Intel Pentium Gold G5500T
2C 4T @ 3.20 GHz |
||
|
|
Intel Core i5-4460T
4C 4T @ 2.30 GHz |
||
|
|
Intel Core i3-4130
2C 4T @ 3.40 GHz |
||
Cinebench R20 (Single-Core)
Cinebench R20 is the successor of Cinebench R15 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.
|
|
AMD FX-8350
8C 8T @ 4.20 GHz |
||
|
AMD Phenom II X6 1100T
6C 6T @ 3.70 GHz |
||
|
Intel Xeon E5-1650 v2
6C 12T @ 3.90 GHz |
||
|
|
Intel Core i5-760
4C 4T @ 3.33 GHz |
||
|
|
AMD FX-8370
8C 8T @ 4.30 GHz |
||
|
|
AMD FX-6300
6C 6T @ 4.10 GHz |
||
|
|
AMD A8-5600K
4C 4T @ 3.90 GHz |
||
Cinebench R20 (Multi-Core)
Cinebench R20 is the successor of Cinebench R15 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.
|
Intel Xeon E5450
4C 4T @ 3.00 GHz |
||
|
|
AMD A10-9700
4C 4T @ 3.50 GHz |
||
|
|
AMD Phenom II X4 965
4C 4T @ 3.40 GHz |
||
|
|
Intel Core i5-760
4C 4T @ 2.80 GHz |
||
|
Intel Core 2 Quad Q9300
4C 4T @ 2.50 GHz |
||
|
AMD Athlon II X4 860K
4C 4T @ 4.00 GHz |
||
|
|
AMD A8-3870K
4C 4T @ 3.10 GHz |
||
Estimated results for PassMark CPU Mark
Some of the CPUs listed below have been benchmarked by CPU-monkey. However the majority of CPUs have not been tested and the results have been estimated by a CPU-monkey’s secret proprietary formula. As such they do not accurately reflect the actual Passmark CPU mark values and are not endorsed by PassMark Software Pty Ltd.
|
|
AMD Phenom II X3 710
3C 3T @ 2.60 GHz |
||
|
|
Intel Pentium G4400
2C 2T @ 3.30 GHz |
||
|
|
Intel Core i5-680
2C 4T @ 3.60 GHz |
||
|
|
Intel Core i5-760
4C 4T @ 2.80 GHz |
||
|
|
Intel Celeron G5900T
2C 2T @ 3.20 GHz |
||
|
|
Intel Core 2 Quad Q9700
4C 4T @ 3.20 GHz |
||
|
|
AMD A4-6320
2C 2T @ 4.00 GHz |
||
CPU-Z Benchmark 17 (Multi-Core)
The CPU-Z benchmark measures a processor's performance by measuring the time it takes the system to complete all benchmark calculations. The faster the benchmark is completed, the higher the score.
|
|
Intel Core i5-2400S
4C 4T @ 2.50 GHz |
||
|
|
Intel Pentium G4560
2C 4T @ 3.50 GHz |
||
|
|
AMD FX-6200
6C 6T @ 3.80 GHz |
||
|
|
Intel Core i5-760
4C 4T @ 2.80 GHz |
||
|
|
Intel Core i3-4160
2C 4T @ 3.60 GHz |
||
|
|
Intel Core 2 Quad Q9550
4C 4T @ 2.83 GHz |
||
|
|
Intel Core 2 Quad Q9500
4C 4T @ 2.83 GHz |
||
Cinebench R15 (Single-Core)
Cinebench R15 is the successor of Cinebench 11.5 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.
|
|
Intel Core i7-870
4C 8T @ 3.60 GHz |
||
|
|
Intel Pentium G2020
2C 2T @ 2.90 GHz |
||
|
|
AMD A12-9800
4C 4T @ 4.20 GHz |
||
|
|
Intel Core i5-760
4C 4T @ 3.33 GHz |
||
|
|
Intel Core i3-3240T
2C 4T @ 2.90 GHz |
||
|
|
Intel Celeron G1630
2C 2T @ 2.80 GHz |
||
|
|
AMD FX-8310
8C 8T @ 4.30 GHz |
||
Cinebench R15 (Multi-Core)
Cinebench R15 is the successor of Cinebench 11.5 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.
|
|
AMD FX-6100
6C 6T @ 3.90 GHz |
||
|
|
AMD Phenom II X4 960T
4C 4T @ 3.40 GHz |
||
|
|
AMD Phenom II X4 965
4C 4T @ 3.40 GHz |
||
|
|
Intel Core i5-760
4C 4T @ 2.80 GHz |
||
|
|
Intel Core i3-6100T
2C 4T @ 3.20 GHz |
||
|
|
Intel Pentium Gold G6400TE
2C 4T @ 3.20 GHz |
||
|
|
AMD Phenom II X4 B99
4C 4T @ 3.30 GHz |
||
