AMD Ryzen Z1 Benchmark, Test and specs
Last updated:
The AMD Ryzen Z1 was released in Q3/2023 and has 6 cores. The processor can process 12 threads simultaneously and uses a mainboard with the socket FP8. In the Geekbench 5 benchmark, the AMD Ryzen Z1 achieved a result of 1,821 points (single-core) or 7,706 points (multi-core).
| Name: | AMD Ryzen Z1 |
|---|---|
| Family: | AMD Ryzen Z1 (2) |
| CPU group: | AMD Ryzen 7040 (21) |
| Architecture: | Phoenix (Zen 4) |
| Technology: | 4 nm |
| Segment: | Notebook |
| Generation: | 6 |
| Predecessor: | -- |
| Successor: | -- |
CPU Cores and Base Frequency
The AMD Ryzen Z1 has 6 cores. The clock frequency of the AMD Ryzen Z1 is 3.50 GHz (4.90 GHz). An initial performance assessment can be made using the number of CPU cores.
| CPU Cores / Threads: | 6 / 12 |
|---|---|
| Core architecture: | normal |
| Cores: | 6x Zen 4 |
| Hyperthreading / SMT: | Yes |
|---|---|
| Overclocking: | No |
| Frequency: | 3.50 GHz |
| Turbo Frequency (1 Core): | 4.90 GHz |
| Turbo Frequency (6 Cores): | -- |
Integrated graphics (iGPU)
The AMD Ryzen Z1 has an integrated graphics that the system can use to efficiently play back videos. The AMD Ryzen Z1 has the AMD Radeon 740M installed, which has 4 streaming multiprocessors (256 shaders).
| GPU name: | AMD Radeon 740M |
|---|---|
| GPU frequency: | 0.80 GHz |
| GPU (Turbo): | 2.50 GHz |
| Compute units: | 4 |
| Shader: | 256 |
| Hardware Raytracing: | Yes |
| Release date: | Q3/2023 |
| Max. displays: | 4 |
|---|---|
| Generation: | 10 |
| Direct X: | 12 |
| Technology: | 4 nm |
| Max. GPU Memory: | 32 GB |
| Frame Generation: | AMD FSR |
Hardware codec support
Processors with integrated graphics can process video codecs faster. Support for modern codecs can significantly increase system efficiency during video playback.
| h265 / HEVC (8 bit): | Decode / Encode |
|---|---|
| h265 / HEVC (10 bit): | Decode / Encode |
| h264: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | Decode / Encode |
|---|---|
| AVC: | Decode |
| VC-1: | Decode |
| JPEG: | Decode / Encode |
Memory & PCIeThe AMD Ryzen Z1 supports a maximum of 256 GB memory. Depending on the mainboard, the processor can use a maximum of 2 (Dual Channel) memory channels. This results in a maximum bandwidth of the main memory of 120.0 GB/s. |
|
| Memory type: | Memory bandwidth: |
|---|---|
| DDR5-4800 DDR5-5600 LPDDR5-6400 LPDDR5X-7500 | 76.8 GB/s 89.6 GB/s 102.4 GB/s 120.0 GB/s |
| Max. Memory: | 256 GB |
| Memory channels: | 2 (Dual Channel) |
| ECC: | Yes |
| PCIe: | 4.0 x 20 |
| PCIe Bandwidth: | 39.4 GB/s |
Thermal ManagementThe AMD Ryzen Z1 has a TDP of 15 W. Based on the TDP, the system manufacturer can and must adapt the cooling solution to the processor. |
|
|---|---|
| TDP (PL1 / PBP): | 15 W |
| TDP (PL2): | -- |
| TDP up: | 30 W |
| TDP down: | 15 W |
| Tjunction max.: | 100 °C |
Technical details
Modern production reduces the waste heat of a processor and increases its efficiency. The AMD Ryzen Z1 is made in 4 nm and has 22.00 MB cache.
| Technology: | 4 nm |
|---|---|
| Chip design: | Monolithic |
| Socket: | FP8 |
| L2-Cache: | 6.00 MB |
| L3-Cache: | 16.00 MB |
| AES-NI: | Yes |
| Operating systems: | Windows 10, Windows 11, Linux |
| Virtualization: | AMD-V, SVM |
|---|---|
| Instruction set (ISA): | x86-64 (64 bit) |
| ISA extensions: | SSE4a, SSE4.1, SSE4.2,FMA3, AVX2, AVX512 |
| Release date: | Q3/2023 |
| Release price: | -- |
| Part Number: | -- |
| Documents: | Technical data sheet |
6C 12T @ 3.50 GHz (4.90 GHz)
buy now on Amazon and save!
Rate this processor
Benchmark results
The benchmark results for the AMD Ryzen Z1 have been carefully checked by us. We only publish benchmark results that have been created by us or that have been submitted by a visitor and then checked by a team member. All results are based on and fullfill our benchmark guidelines.

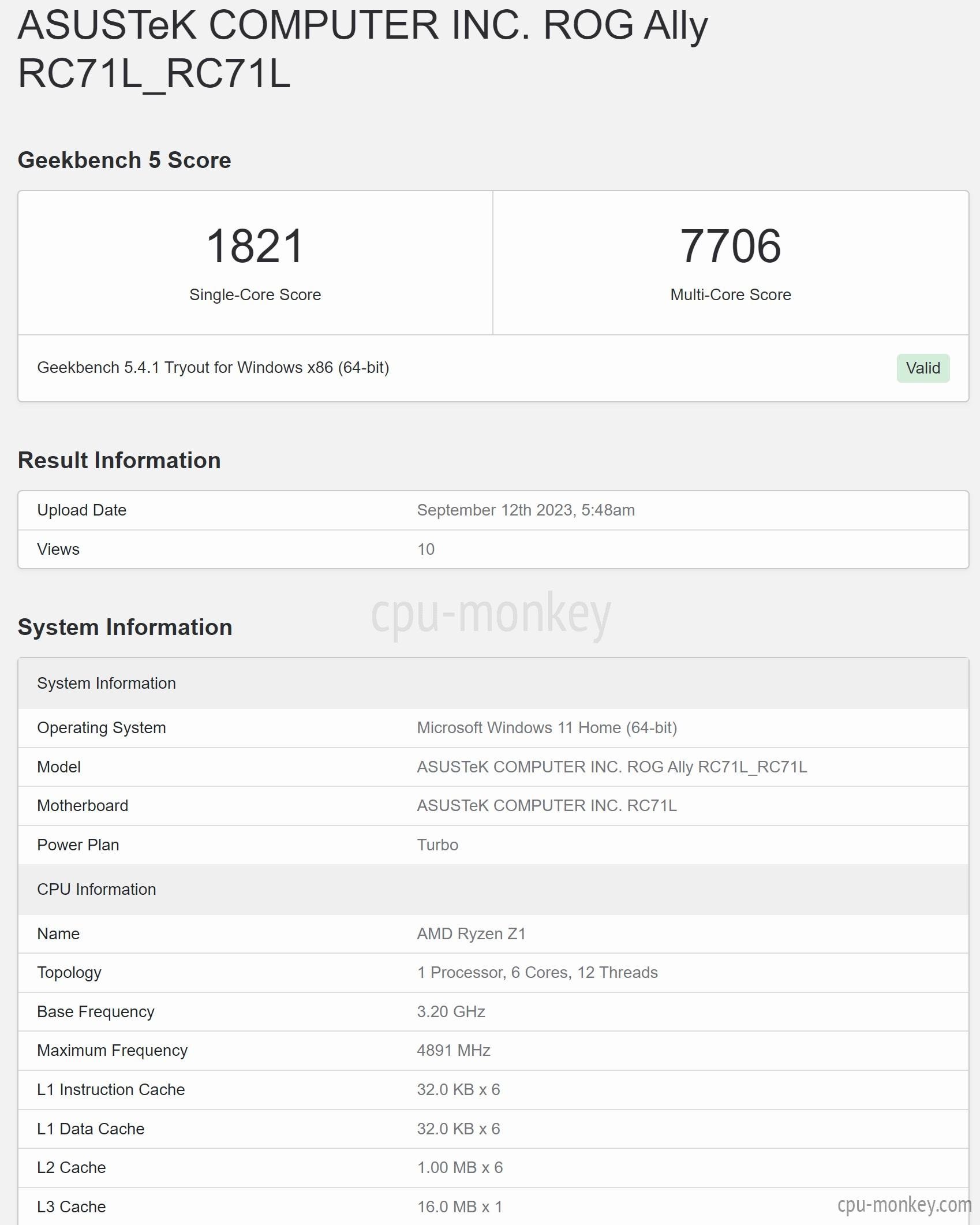

Screenshots:
Screenshots:
Geekbench 5, 64bit (Single-Core)
Geekbench 5 is a cross plattform benchmark that heavily uses the systems memory. A fast memory will push the result a lot. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.
|
AMD Ryzen 7 7840U
8C 16T @ 5.10 GHz |
||
|
AMD Ryzen 7 PRO 7840U
8C 16T @ 5.10 GHz |
||
|
Intel Core i5-13600HX
14C 20T @ 4.80 GHz |
||
|
AMD Ryzen Z1
6C 12T @ 4.90 GHz |
||
|
|
Intel Core i5-14500HX
14C 20T @ 4.90 GHz |
||
|
AMD Ryzen 5 7640HS
6C 12T @ 5.00 GHz |
||
|
AMD Ryzen 5 PRO 7640HS
6C 12T @ 5.00 GHz |
||
Geekbench 5, 64bit (Multi-Core)
Geekbench 5 is a cross plattform benchmark that heavily uses the systems memory. A fast memory will push the result a lot. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.
|
|
AMD Ryzen 5 7640HS
6C 12T @ 4.30 GHz |
||
|
|
AMD Ryzen 5 PRO 7640HS
6C 12T @ 4.30 GHz |
||
|
Intel Core i9-10980HK
8C 16T @ 3.40 GHz |
||
|
|
AMD Ryzen Z1
6C 12T @ 3.50 GHz |
||
|
AMD Ryzen 9 5980HS
8C 16T @ 4.00 GHz |
||
|
Apple M1 (7-GPU)
8C 8T @ 3.20 GHz |
||
|
|
Apple M1
8C 8T @ 3.20 GHz |
||
iGPU - FP32 Performance (Single-precision GFLOPS)
The theoretical computing performance of the internal graphics unit of the processor with simple accuracy (32 bit) in GFLOPS. GFLOPS indicates how many billion floating point operations the iGPU can perform per second.
|
Intel Core i7-1250U
Intel Iris Xe Graphics 96 (Alder Lake) @ 0.90 GHz |
||
|
|
AMD Ryzen 5 4680U
AMD Radeon RX Vega 7 (Renoir) @ 1.50 GHz |
||
|
Intel Core Ultra 5 115U
Intel Iris Xe 3 Core Graphics 48 EUs (Meteor Lake) @ 1.80 GHz |
||
|
|
AMD Ryzen Z1
AMD Radeon 740M @ 2.50 GHz |
||
|
|
AMD Ryzen 5 7540U
AMD Radeon 740M @ 2.50 GHz |
||
|
AMD Ryzen 3 7440U
AMD Radeon 740M @ 2.50 GHz |
||
|
|
AMD Ryzen 5 PRO 7540U
AMD Radeon 740M @ 2.50 GHz |
||
