Intel Core2 Duo E4300 Benchmark, Test and specs
Last updated:
The Intel Core2 Duo E4300 was released in Q3/2007 and has 2 cores. The processor can process 2 threads simultaneously and uses a mainboard with the socket LGA 775. In the Geekbench 5 benchmark, the Intel Core2 Duo E4300 achieved a result of 251 points (single-core) or 459 points (multi-core).
| Name: | Intel Core2 Duo E4300 |
|---|---|
| Family: | Intel Core2 Duo (29) |
| CPU group: | Intel Core 2 Duo E4000/E6000 (15) |
| Architecture: | Conroe (Core) |
| Technology: | 65 nm |
| Segment: | Desktop |
| Generation: | 1 |
| Predecessor: | -- |
| Successor: | -- |
CPU Cores and Base Frequency
The Intel Core2 Duo E4300 has 2 cores. The clock frequency of the Intel Core2 Duo E4300 is 1.80 GHz. An initial performance assessment can be made using the number of CPU cores.
| CPU Cores / Threads: | 2 / 2 |
|---|---|
| Core architecture: | normal |
| Cores: | 2x |
| Hyperthreading / SMT: | No |
|---|---|
| Overclocking: | Yes |
| Frequency: | 1.80 GHz |
| Turbo Frequency (1 Core): | -- |
| Turbo Frequency (2 Cores): | -- |
Memory & PCIeThe Intel Core2 Duo E4300 supports a maximum of 16 GB memory. Depending on the mainboard, the processor can use a maximum of 2 (Dual Channel) memory channels. This results in a maximum bandwidth of the main memory of 21.3 GB/s. |
|
| Memory type: | Memory bandwidth: |
|---|---|
| DDR3-1333 DDR2-1066 | 21.3 GB/s 17.1 GB/s |
| Max. Memory: | 16 GB |
| Memory channels: | 2 (Dual Channel) |
| ECC: | No |
| PCIe: | |
| PCIe Bandwidth: | -- |
Thermal ManagementThe Intel Core2 Duo E4300 has a TDP of 65 W. Based on the TDP, the system manufacturer can and must adapt the cooling solution to the processor. |
|
|---|---|
| TDP (PL1 / PBP): | 65 W |
| TDP (PL2): | -- |
| TDP up: | -- |
| TDP down: | -- |
| Tjunction max.: | -- |
Technical details
Modern production reduces the waste heat of a processor and increases its efficiency. The Intel Core2 Duo E4300 is made in 65 nm and has 2.00 MB cache.
| Technology: | 65 nm |
|---|---|
| Chip design: | Monolithic |
| Socket: | LGA 775 |
| L2-Cache: | 2.00 MB |
| L3-Cache: | -- |
| AES-NI: | No |
| Operating systems: | Windows 10, Linux |
| Virtualization: | VT-x |
|---|---|
| Instruction set (ISA): | x86-64 (64 bit) |
| ISA extensions: | MMX, SSE, SSE2, SSE3 |
| Release date: | Q3/2007 |
| Release price: | -- |
| Part Number: | -- |
| Documents: | -- |
2C 2T @ 1.80 GHz
buy now on Amazon and save!
Rate this processor
Benchmark results
The benchmark results for the Intel Core2 Duo E4300 have been carefully checked by us. We only publish benchmark results that have been created by us or that have been submitted by a visitor and then checked by a team member. All results are based on and fullfill our benchmark guidelines.

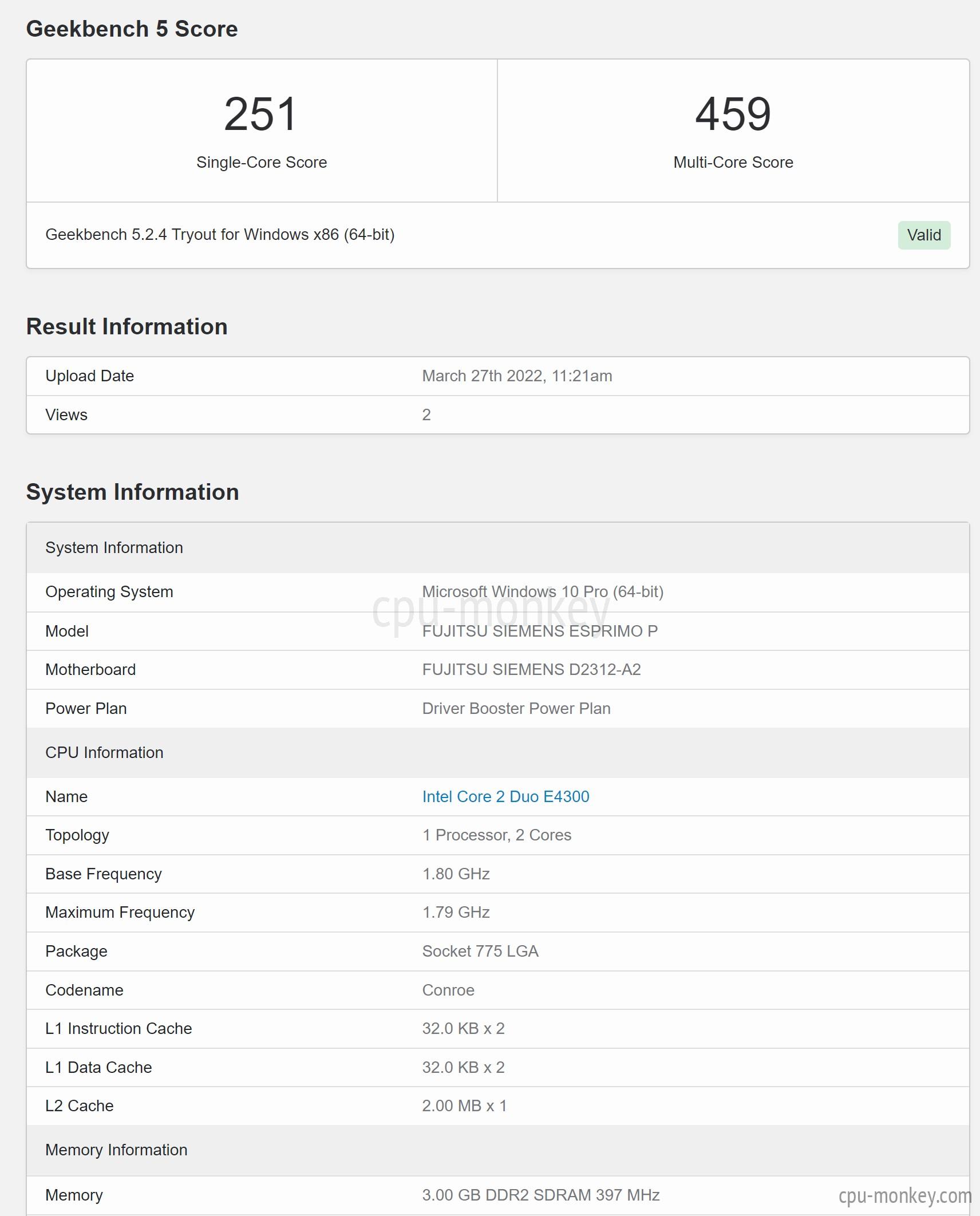

Screenshots:
Screenshots:
Geekbench 5, 64bit (Single-Core)
Geekbench 5 is a cross plattform benchmark that heavily uses the systems memory. A fast memory will push the result a lot. The single-core test only uses one CPU core, the amount of cores or hyperthreading ability doesn't count.
|
Intel Core2 Duo E6300
2C 2T @ 1.86 GHz |
||
|
Intel Pentium E2160
2C 2T @ 1.80 GHz |
||
|
|
Intel Pentium N3530
4C 4T @ 2.58 GHz |
||
|
|
Intel Core2 Duo E4300
2C 2T @ 1.80 GHz |
||
|
AMD Athlon II X2 260u
2C 2T @ 1.80 GHz |
||
|
Intel Atom C3508
4C 4T @ 1.60 GHz |
||
|
|
Intel Pentium N3710
4C 4T @ 2.56 GHz |
||
Geekbench 5, 64bit (Multi-Core)
Geekbench 5 is a cross plattform benchmark that heavily uses the systems memory. A fast memory will push the result a lot. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.
|
|
AMD Athlon II X2 260u
2C 2T @ 1.80 GHz |
||
|
Intel Celeron E1600
2C 2T @ 2.40 GHz |
||
|
|
Intel Core2 Duo E6300
2C 2T @ 1.86 GHz |
||
|
|
Intel Core2 Duo E4300
2C 2T @ 1.80 GHz |
||
|
|
Intel Pentium E2160
2C 2T @ 1.80 GHz |
||
|
|
Intel Celeron E1500
2C 2T @ 2.20 GHz |
||
|
|
AMD Athlon II X2 250u
2C 2T @ 1.60 GHz |
||
Estimated results for PassMark CPU Mark
Some of the CPUs listed below have been benchmarked by CPU-monkey. However the majority of CPUs have not been tested and the results have been estimated by a CPU-monkey’s secret proprietary formula. As such they do not accurately reflect the actual Passmark CPU mark values and are not endorsed by PassMark Software Pty Ltd.
|
|
Intel Core2 Duo E6300
2C 2T @ 1.86 GHz |
||
|
|
AMD Athlon II X2 250u
2C 2T @ 1.60 GHz |
||
|
|
Intel Celeron E1400
2C 2T @ 2.00 GHz |
||
|
|
Intel Core2 Duo E4300
2C 2T @ 1.80 GHz |
||
|
AMD Sempron 2650
2C 2T @ 1.45 GHz |
||
|
|
Intel Pentium E2140
2C 2T @ 1.60 GHz |
||
|
|
Intel Atom S1260
2C 4T @ 2.00 GHz |
||
CPU-Z Benchmark 17 (Multi-Core)
The CPU-Z benchmark measures a processor's performance by measuring the time it takes the system to complete all benchmark calculations. The faster the benchmark is completed, the higher the score.
|
AMD Phenom II X2 555
2C 2T @ 3.20 GHz |
||
|
|
AMD Phenom II X2 550
2C 2T @ 3.10 GHz |
||
|
|
AMD Athlon II X2 255
2C 2T @ 3.10 GHz |
||
|
|
Intel Core2 Duo E4300
2C 2T @ 1.80 GHz |
||
|
|
AMD Athlon II X2 250
2C 2T @ 3.00 GHz |
||
|
|
AMD Athlon II X2 245
2C 2T @ 2.90 GHz |
||
|
|
AMD Athlon II X2 240
2C 2T @ 2.80 GHz |
||
